ACT Mod-Twin 225 HD Rigid Street - 89-92 Nissan Skyline GT-R (R32) - T1S-N06

ACTSKU: ACTT1S-N06

Price:
$1,720 $2,123
Stock:
Contact us for availability!

Description

Specifications

Item Description ACT Mod-Twin 225 Heavy Duty Rigid Street Clutch Kit
Product Weight (lbs.) 25.9
Torque Capacity (ft/lbs.) 625
Torque Capacity Over OE 99%
Disc Material Organic
Clutch Disc Diameter (Inches) 8.8
Clutch Disc Diameter (Millimeters) 225
Input Shaft Diameter (inches) 1
Pressure Plate Type Heavy Duty
Warranty 12 Months (view details)
SFI 1.2
UPC 00842385029326

Description

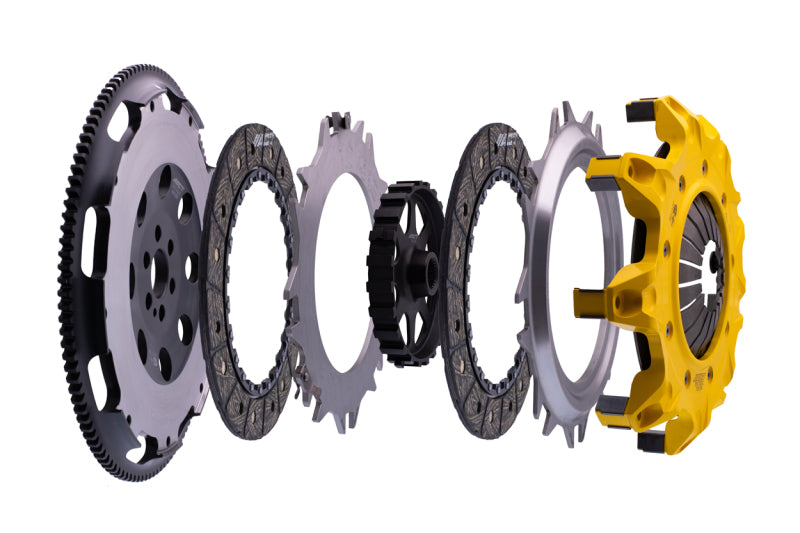

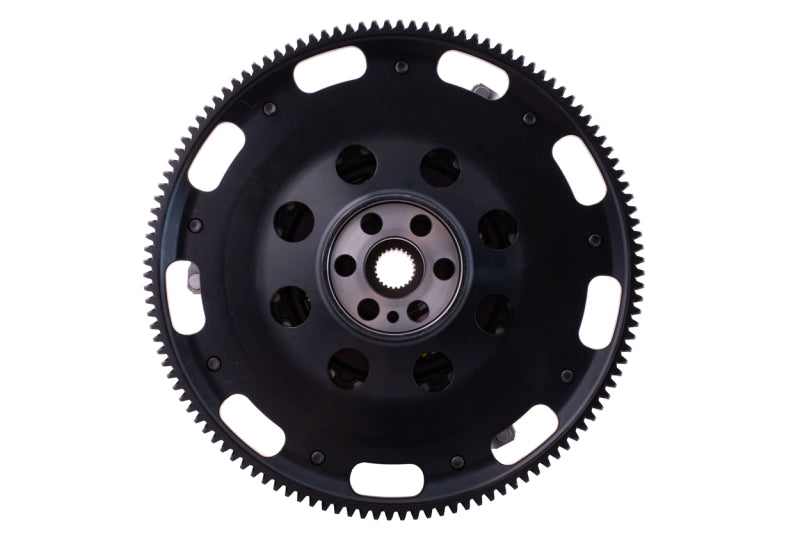

T1S-N06 Mod-Twin 225 HD Rigid Street Kit blends easy pedal feel, smooth but positive engagement with quick shifting for high powered AWD’s by combining twice the organic friction surfaces with a no-nonsense rigid Mono-Drive hub in a completely modular design. Each diaphragm spring endures an exclusive four-stage heat treating process. Steel-backed Friction Plates with high quality organic friction materials deliver stable friction coefficient, good heat capacity and long clutch life. These Friction Plates uniformly transfer torque to a Mono-Drive chrome-moly hub which is heat treated for strength and durability extending input shaft life with one continuous spline. The lightweight, rigid design allows for quicker shifts and trouble-free service. This kit includes a CNC-machined and dynamically balanced flywheel, pressure plate cover, diaphragm spring, face, puck-style ceramic friction plates, rigid Mono-Drive hub, floater, patented Monoloc Collar, release bearing, alignment tool and pilot bearing (if needed). Mod-Twin clutches are fully rebuildable and most components can be ordered separately.

Description
Feel Soft progressive engagement, light pedal effort, smooth shifting, with mild to moderate transmission gear noise
Life Forged Aluminum Cover, Mono-drive hub, exclusive diaphragm, premium friction materials, and hardened wear points ensure this long-life twin performs and survives under the most demanding conditions
Quality Delivers maximum performance and high heat tolerance by combining robust design, strategic features, choice materials, and close tolerances
Recommended Use Street or Street/Strip
ACT Difference Applying tactical engineering to the Mod-Twin, ACT presents unique solutions to common tradeoffs found on twin disc clutches, resulting in an ultra-durable, customer serviceable, long-lasting clutch with very high torque capacity. All are 100% clamp load tested, balanced and SFI certified
