ACT HD/Race Sprung 4 Pad Kit - 13+ Subaru BRZ, 13+ Scion FRS, 13+ Toyota 86 - w/ Prolite Flywheel - SB8-HDG4

ACTSKU: ACTSB8-HDG4

Price:
$803 $1,029
Stock:
Contact us for availability!

Description

SB8-HDG4 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT’s 4-pad spring-centered race disc features a spring-center to properly damp torsional vibrations for quieter operation and resist failure even under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 4-pad spring-centered race disc, engagement is harsher, but shifting is faster. ACT’s 4-pad spring-centered race disc is well-suited for smaller disc sizes in smaller engines.

Specifications:
Torque Capacity (ft/lbs): 349
Clutch Disc Diameter (mm): 224
Input Shaft Diameter (inches): 1"
Input Spline Spline Count: 24

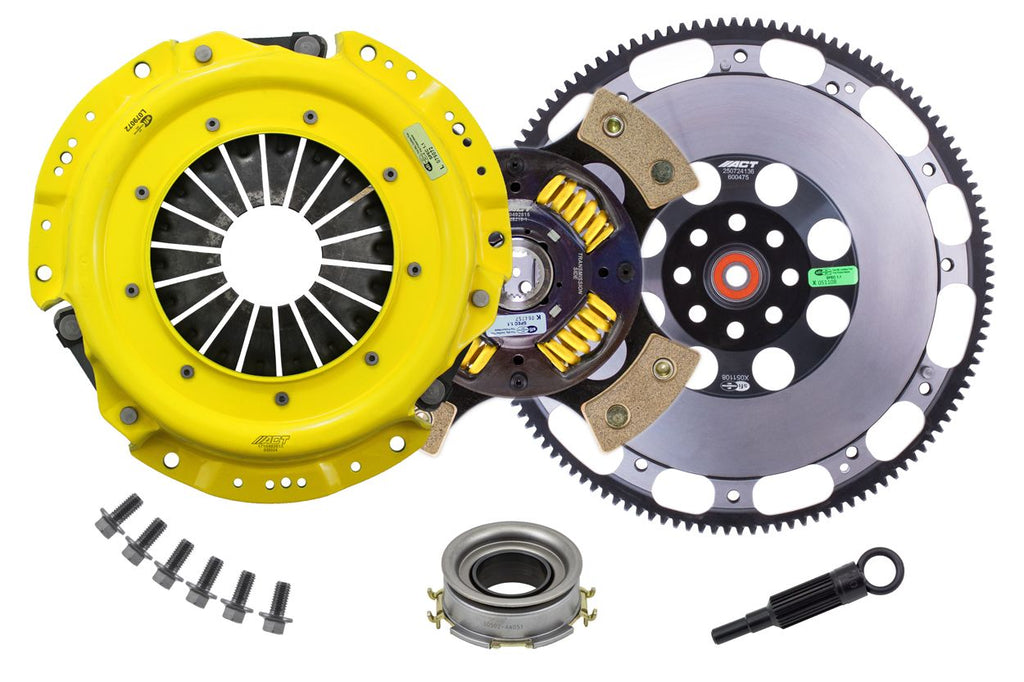

What's Inside The Kit?
Pressure Plate: SB017
Clutch Disc: 4224218-1
Release Bearing: RB004
Alignment Tool: AT90
Flywheel: 600700


Fitment:
13-16 Scion FR-S 2.0 FA20
13-20 Subaru BRZ 2.0 FA20D
17-20 Toyota 86 2.0 FA20
*NOTE: Must use ACT Flywheel (Included in kit)*
