ACT HD/Race Sprung 6 Pad Kit - 02-06 Acura RSX, 04-08 TSX, 02-05 Honda Civic Si, 06-11 Civic Si - AR1-HDG6

Save 22%
ACTSKU: AR1-HDG6

Price:
$458 $587

Description

AR1-HDG6 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT’s 6-pad, spring-centered race disc features a spring-center to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad, spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad, spring-centered disc is recommended for larger clutch sizes to absorb more heat.

Specifications:
Torque Capacity (ft/lbs): 330
Clutch Disc Diameter (mm): 214
Input Shaft Diameter (inches): 11/32"
Input Spline Spline Count: 24

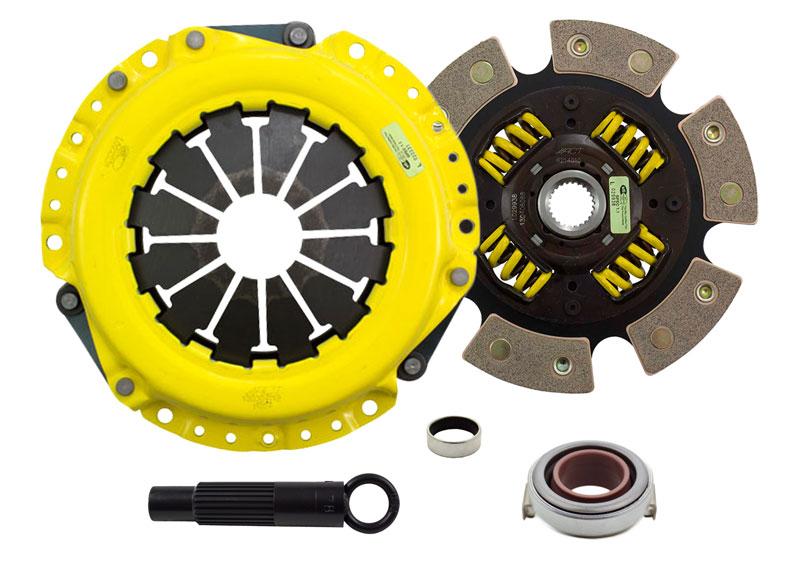

What's Inside The Kit?
Pressure Plate: H024
Clutch Disc: 6214510
Release Bearing: RB313
Pilot Bearing: PBNA004
Alignment Tool: AT78


Fitment:
02-06 Acura RSX Base 2.0 K20A3 *Requires use of RSX Type-S 6spd Flywheel*
02-04 Acura RSX Type S 2.0 K20A2
05-06 Acura RSX Type S 2.0 K20Z1
04-08 Acura TSX 2.4 K24A2 *Requires use of RSX Type-S 6spd Flywheel*
02-05 Honda Civic Si 2.0 K20A3 *Requires use of RSX Type-S 6spd Flywheel*
06-11 Honda Civic Si 2.0 K20Z3
