ACT MaXX/Race Rigid 6 Pad Kit - 92-05 Honda Civic D15 D16 D17, 93-97 Del Sol D15 D16 - HC5-XXR6

ACTSKU: ACTHC5-XXR6

Price:
$539 $691
Stock:
Contact us for availability!

Description

HC5-XXR6 features a MaXX pressure plate for the serious enthusiast. ACT MaXX pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT’s 6-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 6-pad rigid race disc, engagement is harsher, but shifting is faster. The 6-pad rigid race disc is recommended for larger clutch sizes to absorb more heat.

Specifications:
Torque Capacity (ft/lbs): 420
Clutch Disc Diameter (mm): 212
Input Shaft Diameter (inches): 7/8"
Input Spline Spline Count: 20

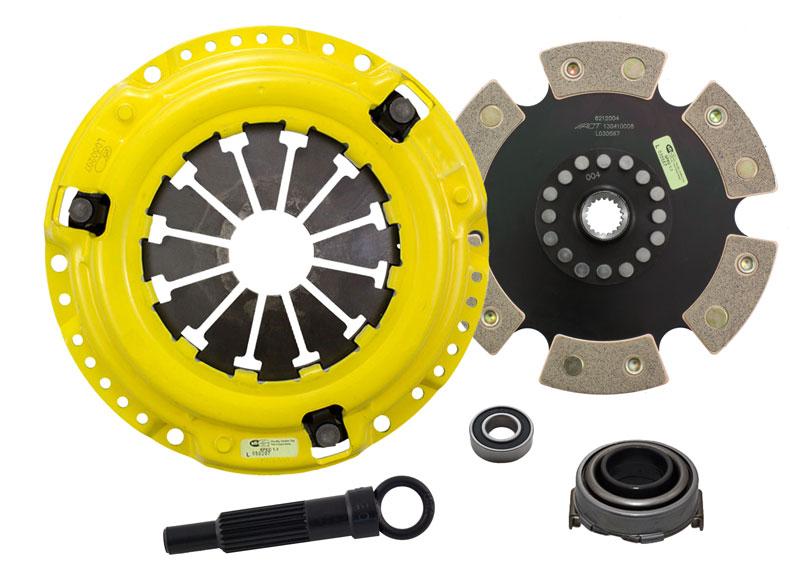

What's Inside The Kit?
Pressure Plate: H023XX
Clutch Disc: 6212004
Release Bearing: RB820
Pilot Bearing: PB1002
Alignment Tool: AT20


Fitment:
92-95 Honda Civic CX 1.5 D15B8
92-95 Honda Civic DX LX 1.5 D15B7
92-95 Honda Civic EX 1.6 D16Z6
92-95 Honda Civic Si 1.6 D16Z6
96-00 Honda Civic CX DX LX 1.6 D16Y7
96-00 Honda Civic EX 1.6 D16Y8
96-00 Honda Civic HX 1.6 D16Y5
01-05 Honda Civic DX 1.7 D17A1
01-05 Honda Civic EX 1.7 D17A2
01-05 Honda Civic HX 1.7 D17A6
01-05 Honda Civic LX 1.7 D17A1
93-95 Honda Del Sol S 1.5 D15B7
96-97 Honda Del Sol S 1.6 D16Y7 *Must use with 90-00 Civic SOHC flywheel*
93-95 Honda Del Sol Si 1.6 D16Z6
96-97 Honda Del Sol Si 1.6 D16Y8 *Must use with 90-00 Civic SOHC flywheel*
