ACT XT/Race Sprung 4 Pad Kit - 13+ Subaru BRZ, 13+ Scion FRS, 13+ Toyota 86 - w/ Prolite Flywheel - SB8-XTG4

ACTSKU: ACTSB8-XTG4

Price:
$945 $1,167
Stock:
Contact us for availability!

Description

NOTE: 240mm conversion kit. Kit comes with Flywheel

SB8-XTG4 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT’s 4-pad spring-centered race disc features a spring-center construction to properly damp torsional vibrations for quieter operation and resist failure even under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 4-pad spring-centered race disc, engagement is harsher, but shifting is faster. ACT’s 4-pad spring-centered race disc is well-suited for smaller disc sizes in smaller engines.


Specifications:
Torque Capacity (ft/lbs): 468
Clutch Disc Diameter (mm): 240
Input Shaft Diameter (inches): 1"
Input Spline Spline Count: 24

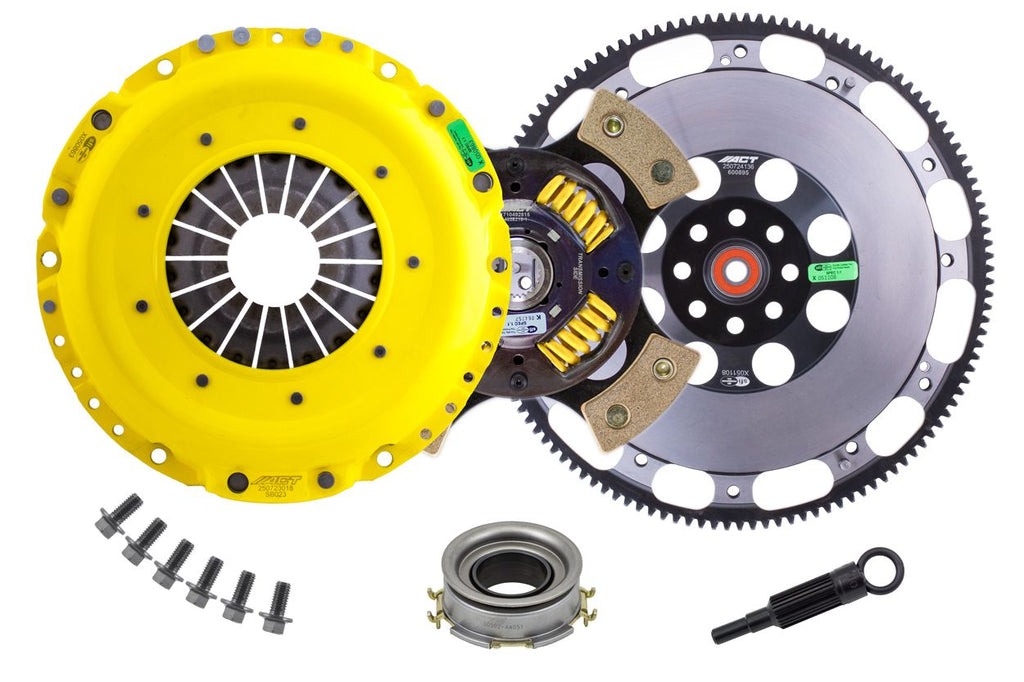

What's Inside The Kit?
Pressure Plate: SB023
Clutch Disc: 4240218-1
Release Bearing: RB004
Alignment Tool: AT90
Flywheel: 600895


Fitment:
13-16 Scion FR-S 2.0 FA20
13-20 Subaru BRZ 2.0 FA20D
17-20 Toyota 86 2.0 FA20
