ACT XT/Race Sprung 6 Pad Kit - 13+ Subaru BRZ, 13+ Scion FRS, 13+ Toyota 86 - w/ Streetlite Flywheel - SB7-XTG6

Save 22%
ACTSKU: SB7-XTG6

Price:
$736 $944

Description

SB7-XTG6 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT’s 6-pad spring-centered race disc features a spring-center construction to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad spring-centered disc is recommended for larger clutch sizes to absorb more heat.

Specifications:
Torque Capacity (ft/lbs): 449
Clutch Disc Diameter (mm): 224
Input Shaft Diameter (inches): 1"
Input Spline Spline Count: 24

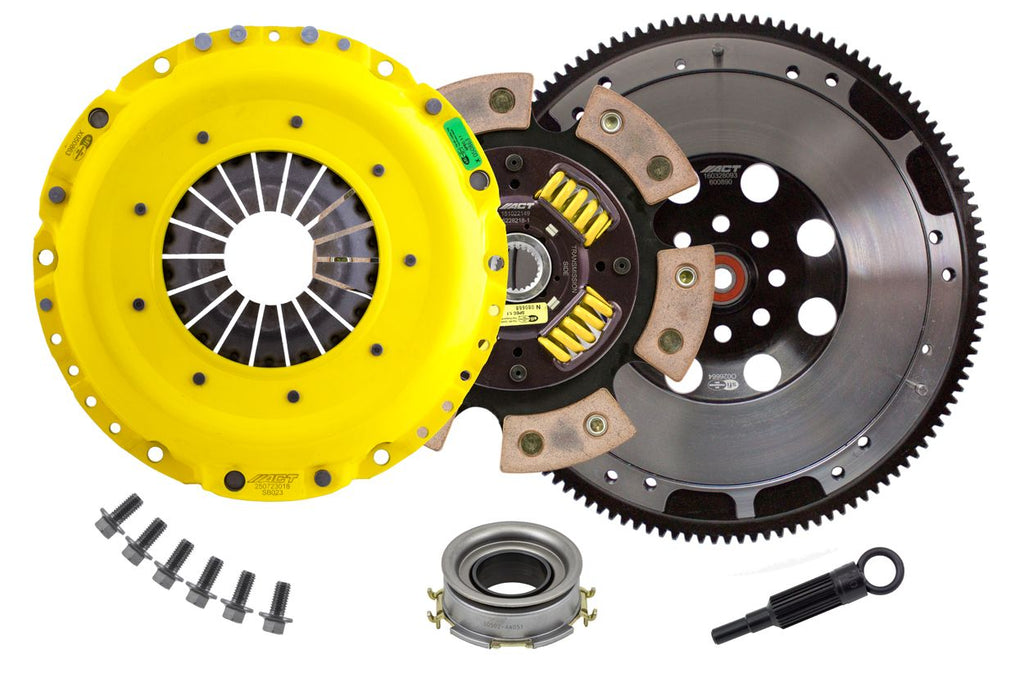

What's Inside The Kit?
Pressure Plate: SB017X
Clutch Disc: 6224218-1
Release Bearing: RB004
Alignment Tool: AT90
Flywheel: 600705


Fitment:
13-16 Scion FR-S 2.0 FA20
13-20 Subaru BRZ 2.0 FA20D
17-20 Toyota 86 2.0 FA20
*NOTE: Must use ACT Flywheel (Included in kit)*
