AEM 12 Position Trim Pot - 30-2056

AEM ElectronicsSKU: AEM30-2056

$28.28 $31.42
Available (503 units), ready to be shipped

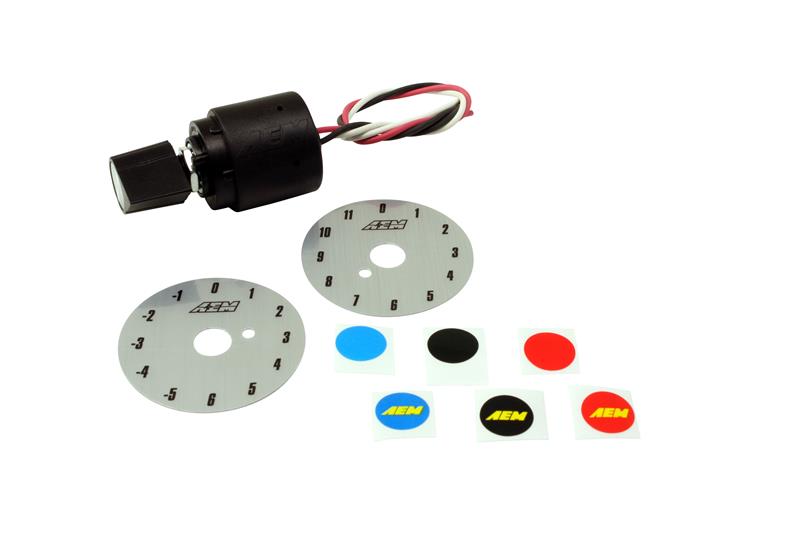

The Universal 12 Position Trim Pot is for use on virtually any Engine Management System, such as the AEM EMS. Use the Trim Pot to adjust a number of trims, including ignition timing, fuel, boost, etc. The Universal 12 Position Trim Pot includes: 12 Position Trim Pot with Flying Lead, 2 Brushed Silver Trim Position Decals with ranges from -5 to +6 and 0 to +11, Blue/Red/Black AEM Logo Knob Decals & Blue/Red/Black Colored Knob Decals. Click here for more AEM sensors and connectors

  • Can be used with virtually any engine management system
  • Includes a weatherproof-over-molded flying lead that has 12-inch insulated, color-coded wires, two brush silver Trim Position decals, and black AEM logo adjustment knob
  • Adjusts a number of trims, including ignition timing, fuel, boost, etc.

  • 12 Position Trim Pot Performance Specifications:
  • Total Resistance: 14.3KO
  • Cycles Minimum: 10,000
  • Positions: 12
  • Degree Rotation: 330
  • Mounting: 3/8" Hole
  • Jam Nut: 1/2" Hex
  • Knob Set Screw: 1/16" Allen
  • Supply Current: 5 Vdc
  • Output: .See table below
  • Over mold weatherproof body with 12" leads, 1 Red (Supply Voltage 5Vdc +/- .5), 1 Black (Ground), 1 White (Output)
