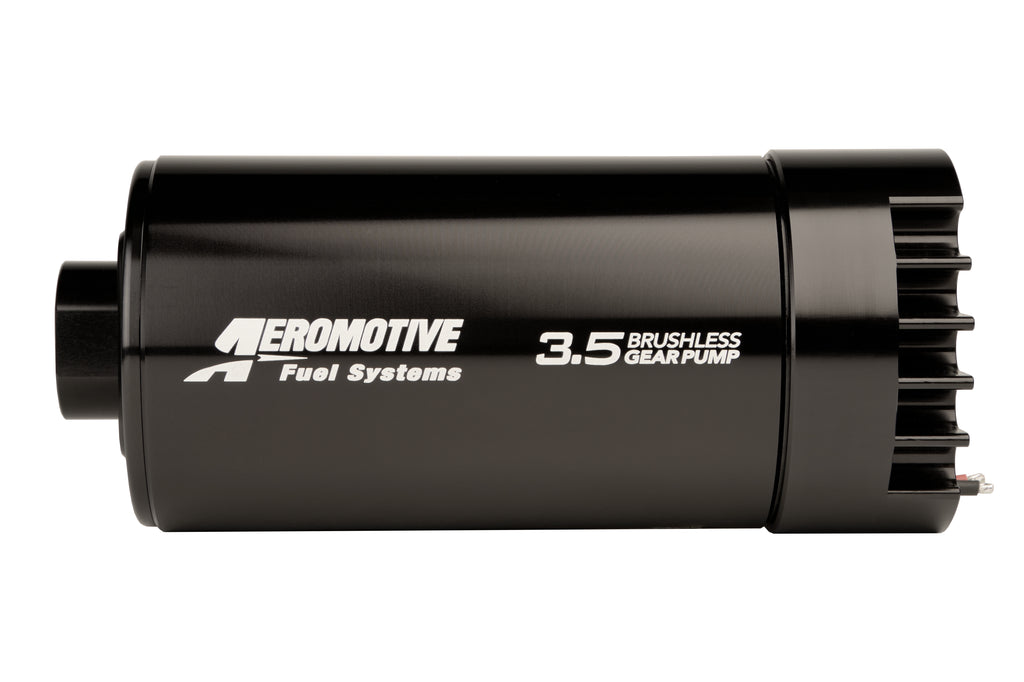

Aeromotive Fuel Pump, In-Line, Brushless, Spur, 3.5 (Includes T-Bolt Clamps For Mounting) - 11181

AeromotiveSKU: AER11181

Price:
$1,628.52
Stock:
Contact us for availability!

Description

Pro-Series Performance Plus Advanced Technology

  • The Pro-Series performance you expect and more:
    • Fuel injected engines: GAS
      up to 2400 FWHP – naturally aspirated
      up to 1800 FWHP – forced air induction
    • Carbureted engines: GAS
      Up to 2600 FWHP – naturally aspirated
      Up to 2000 FWHP – forced air induction
    • Fuel injected engines: E85
      up to 1680 FWHP – naturally aspirated
      up to 1260 FWHP – forced air induction
    • Carbureted engines: E85
      Up to 1820 FWHP – naturally aspirated
      Up to 1400 FWHP – forced air induction
    • Fuel injected engines: METHANOL
      up to 840 FWHP – naturally aspirated
      up to 630 FWHP – forced air induction
    • Carbureted engines: METHANOL
      Up to 910 FWHP – naturally aspirated
      Up to 700 FWHP – forced air induction
  • Lighter than the traditional Pro-Series pump.
  • Reduced current draw at higher, EFI pressures.
  • Extended service life in methanol and ethanol.
  • New integral spur-gear pumping mechanism.
  • 90-PSI continuous operating pressure and up to 150-PSI peak pressure, base plus boost.
  • Integral, external brushless controller for clean installation, cooler fuel and enhanced reliability.
  • This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.
  • ORB-12 inlet and ORB-10 outlet ports.
  • Requires straight 12-VDC to 16-VDC power supply.
  • Not compatible with pulse modulated systems or fuel pump speed controllers.

EFI Rated flow of 1,250 lbs./hr. @ 40 psi, 13.5 volts
Carb Rated Flow of 1,350 lbs./hr. @ 9 psi, 13.5 volts
