K-Tuned Billet CMC Reservoir - 94-01 Integra, 92-00 Civic, EG/DC2/EK - KTD-CMC-RS5

K-TunedSKU: KTD-CMC-RS5

Price:
$71.99 $79.99
Stock:
Contact us for availability!

Description

Applications:

  • 92-95 Civic EG
  • 96-00 Civic EK
  • 94-01 Integra DC2
Features:
* 6061 billet aluminum

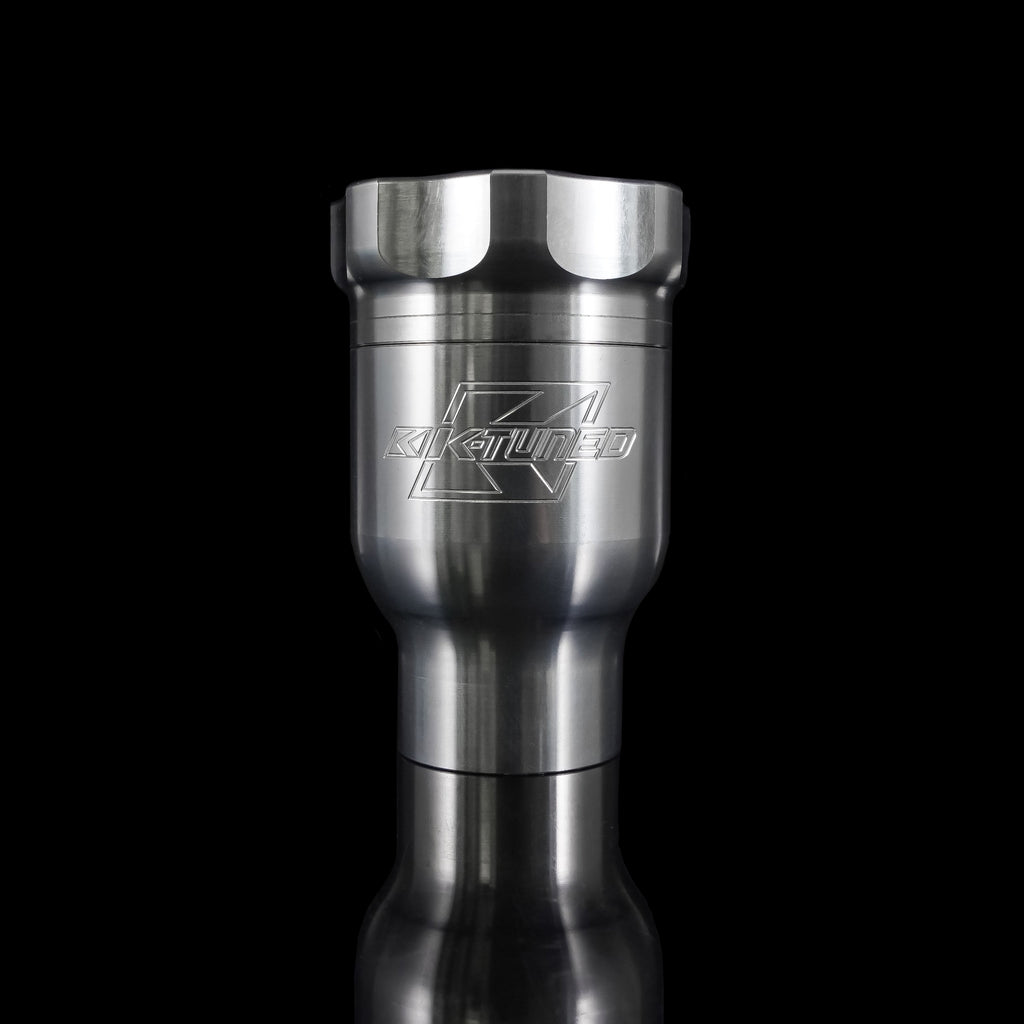

* K-Tuned Engraved Logo

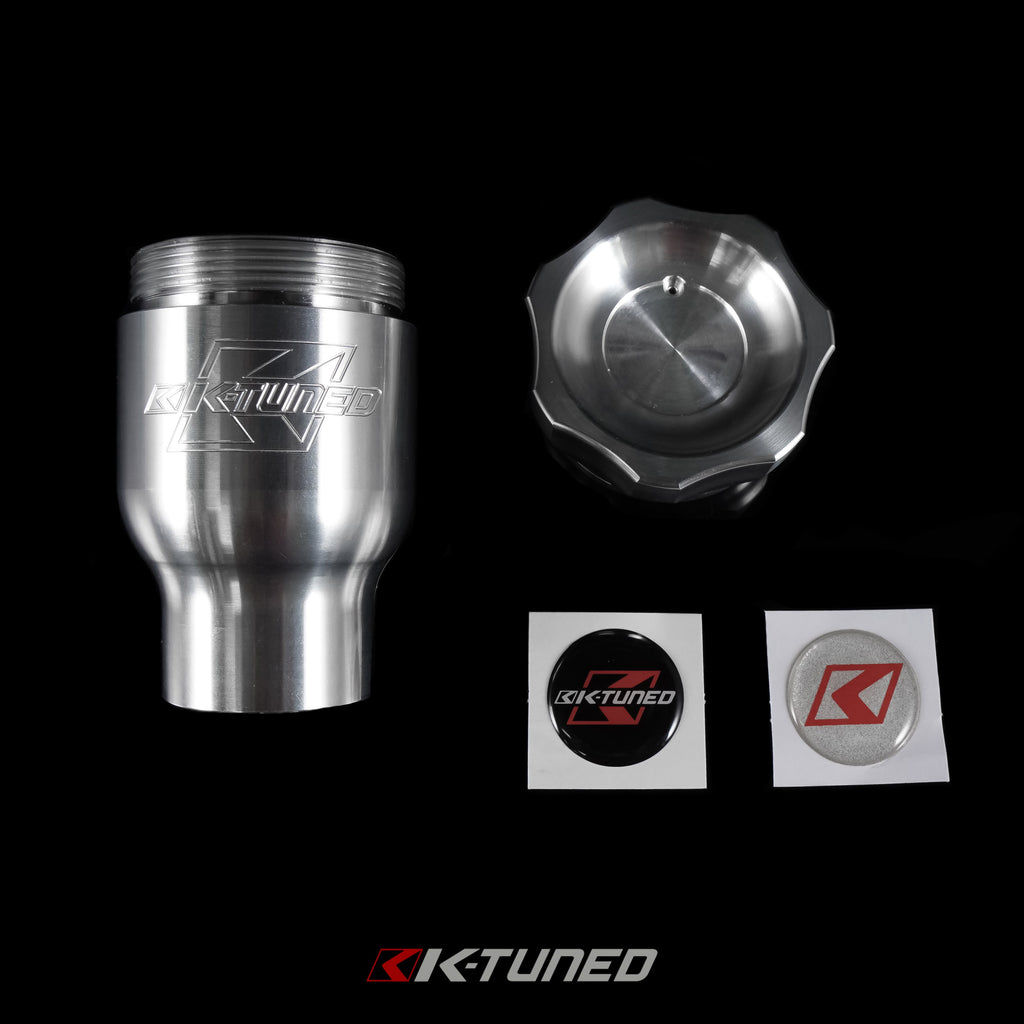

* 2 Decal stickers included
* Reservoir ONLY.  CMC sold separately.

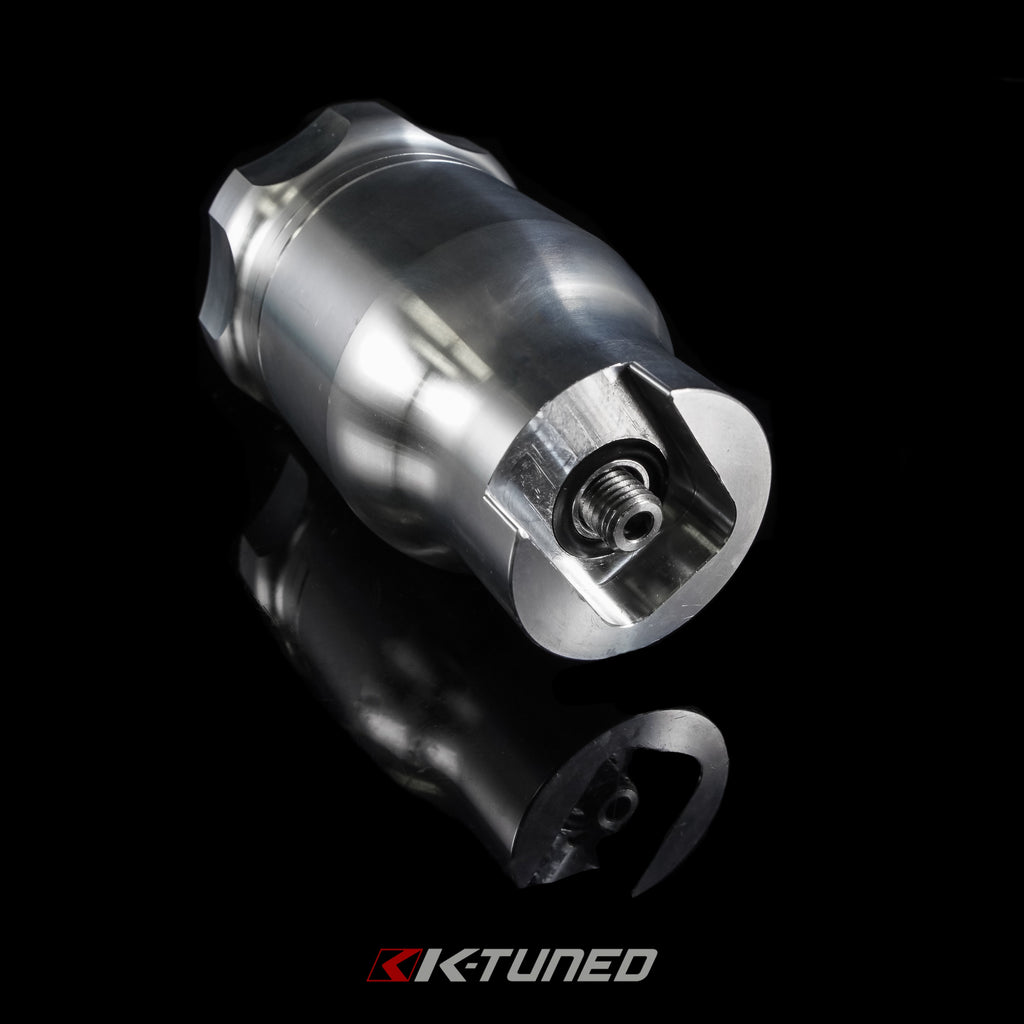

You no longer need to get an S2000 CMC and adapter to have the reservoir mounted directly on your master. The reservoir removes the stock line and remote mounted reservoir. Using a custom fitting and double seal the aluminum reservoir is mounted right to the CMC similar to the S2000 style. Machined from 6061 aluminum it offers the same volume as OEM. The double o-ring seal ensures no chance of leak. The diaphragm allows fluid movement without letting air interact with brake fluid. This is crucial as brake fluid is hygroscopic (absorbs water from the air) which can cause premature clutch fatigue and overheating.

This can be changed without re-bleeding clutch system. First, place an absorbent towel or cloth below the CMC. You do not want brake fluid to come in contact with any paint. Remove the clamp on the hose at the master cylinder. Pinch the line as close to the master as possible. This will hold most fluid inside the line and stock reservoir. There will be a small amount of fluid inside the fitting and line that will leak. Be ready for it before you remove the hose. Once the hose is removed you can next remove the fitting on the master. Place a small amount of lube/oil on the o-rings before installing. You want to first press the fitting into the bottom of the reservoir. This can be done using a 12mm socket and extension. Use a small amount of loctite or similar thread locker on threads of fitting and install the reservoir into the master. Once finished you can slowly fill the reservoir with new brake fluid. Test the clutch pedal to make sure it still feels the same and no air was introduced into the system.



Fitment:

Acura Integra
94-01 Acura Integra GS LS RS 1.8 B18B1
94-01 Acura Integra GS-R 1.8 B18C1
97-01 Acura Integra Type-R 1.8 B18C5
Honda Civic
92-95 Honda Civic CX 1.5 D15B8
92-95 Honda Civic DX LX 1.5 D15B7
92-95 Honda Civic EX 1.6 D16Z6
92-95 Honda Civic Si 1.6 D16Z6
96-00 Honda Civic CX DX LX 1.6 D16Y7
96-00 Honda Civic EX 1.6 D16Y8
96-00 Honda Civic HX 1.6 D16Y5
99-00 Honda Civic Si 1.6 B16A
