K-Tuned K24Z Upper Coolant Housing Straight Inlet w/o Filler Neck - Includes Hose End and 16AN - KUW-4ZS-N01

K-TunedSKU: KTD-KUW-4ZS-N01

Price:
$152.99 $169.99
Stock:
Contact us for availability!

Description

 Applications:

  • K24Z Series Engines
Features:
* a -16OR (O-Ring) Outlet and a -12OR (O-Ring) Filler Inlet
* Greater clearance for sidewinder turbo manifolds

Note:
* Excludes K24A1 and K24Y Series
* Does not come with radiator, it is an optional item

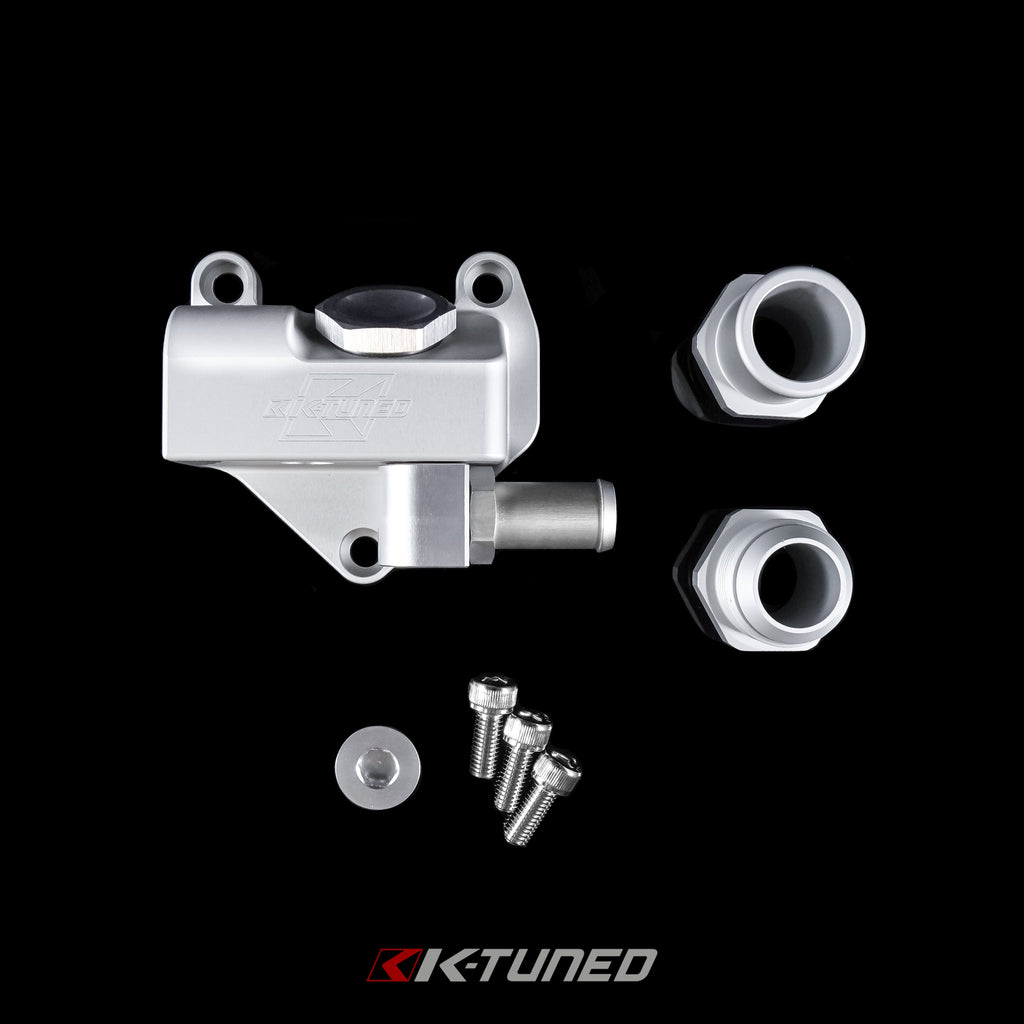

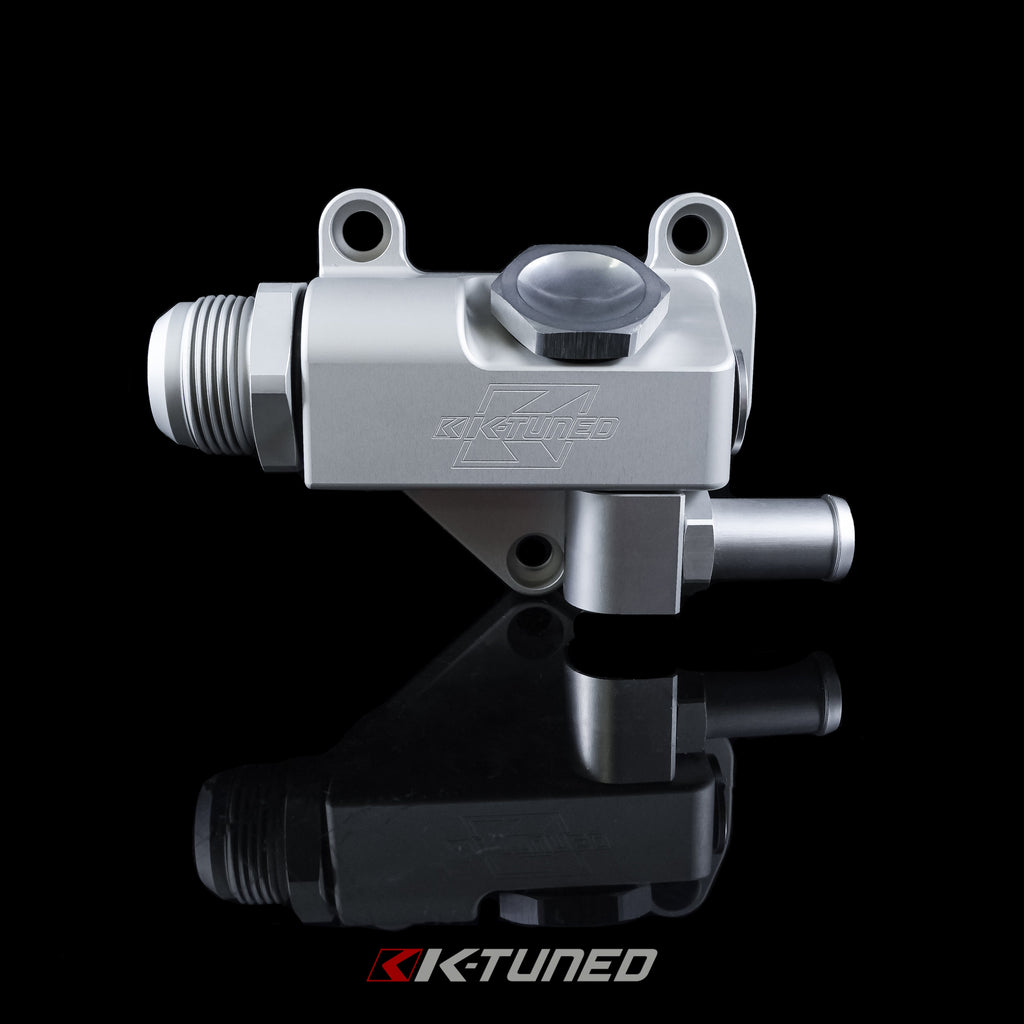

Here is the K-Tuned Upper Coolant Housing. This applied to the K24Z Series engines, these housings will provide several unique advantages over the stock units. The hose outlet on the K-Tuned housing pivots slightly, allowing approximately 15 degrees of angle adjustment. This is helpful when compared to the fixed the factory outlet that always seems to put the upper rad hose in the path of the intake piping. There are three available hose outlets to work with any radiator hose setup. Choose the standard 1.25" rad hose outlet for use with regular rubber or silicone rad hoses. Switch to our optional 16AN fittings for use with upgraded hose and fittings that are also available from K-Tuned.

We have also designed an optional Filler Neck that can be used to relocate the radiator cap to a higher point on the engine itself. The new location is the highest point of the cooling system and allows air pockets to easily escape during the coolant bleeding process. The optional Filler Neck is also available with standard 1.25" hose or 16AN sizes and was designed for use with an OEM 92-00 Honda Civic radiator cap. This part will be very helpful on an engine that already has a bad reputation for coolant bleeding.

The K-Tuned Upper Coolant Housing will compliment our Swivel Neck Thermostat and our Water Pump Block off Plate. All of these parts allow plenty of options for custom and race engine cooling setups.

Fitment:

Acura ILX
13-15 Acura ILX 2.4 K24Z7
Acura TSX
09-14 Acura TSX 2.4 K24Z3
Honda Accord
08-12 Honda Accord 2.4 K24Z2
08-12 Honda Accord 2.4 K24Z3
Honda Civic
12-15 Honda Civic Si 2.4 K24Z7
Honda CRV
07-09 Honda CRV 2.4 K24Z1
10-11 Honda CRV 2.4 K24Z6
12-14 Honda CRV 2.4 K24Z6
