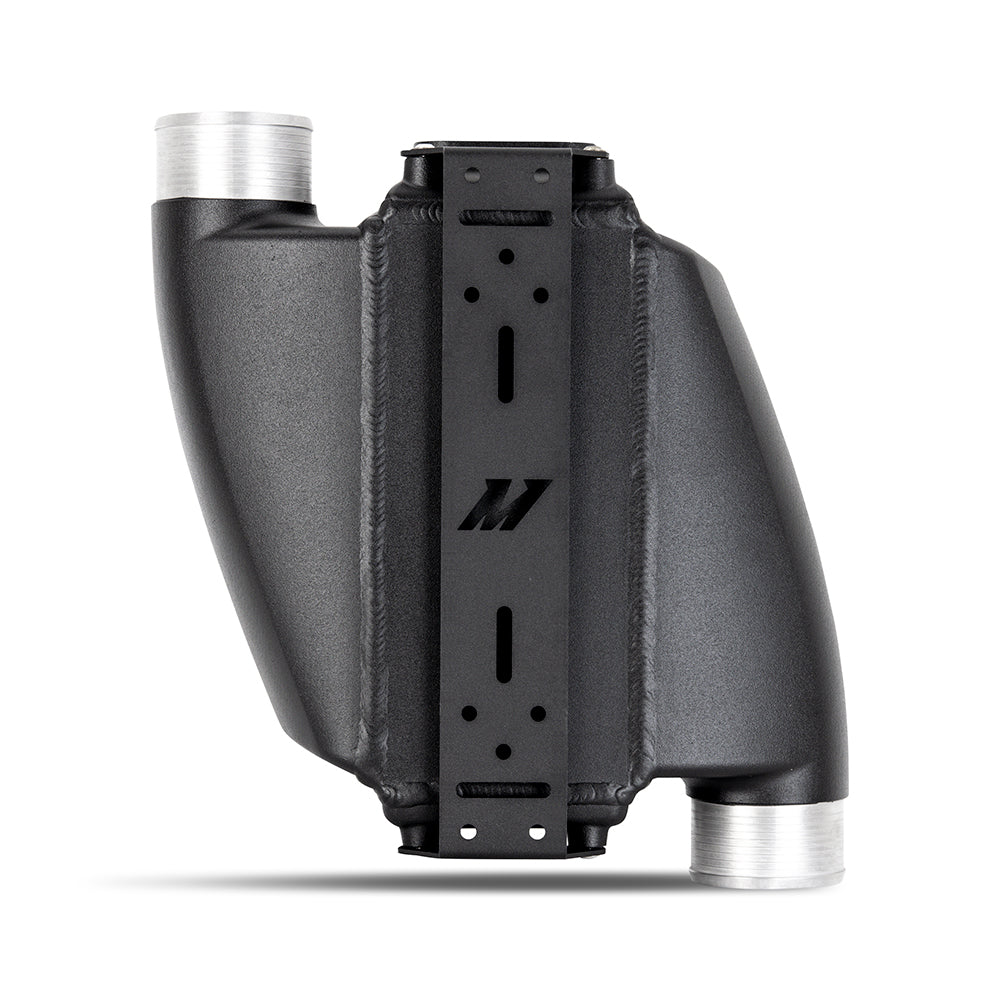

Mishimoto Air-to-Water Intercooler, Dual-Pass Coolant, 1500HP-Opposite Side Inlet/Outlet - MMINT-A2W-DPR-3

MishimotoSKU: MISMMINT-A2W-DPR-3

Price:
$1,036.95 $1,372.95
Stock:
Only 1 unit left. For local pickup, please contact us.

Description

PRODUCT FEATURES

  • Highly efficient air-to-water design delivers effective cooling in a compact package
  • Bar-and-plate core provides durability and efficient cooling for vehicles up to 1500hp
  • Cast-aluminum end tanks are custom engineered to yield superb airflow and durability
  • Available in multiple core sizes, end tank configurations, and single or dual pass coolant flow
  • All-aluminum professionally TIG-welded construction rated to 100psi of boost pressure
  • CNC-machined ribbed airflow inlet/outlet produces secure coupler connections
  • Sleek, subtle, and durable micro-wrinkle black powder coat finish
  • -12ORB coolant ports provide leak-free line connections
  • Includes robust 1/8” thick steel mounting bracket and hardware
  • Abundant coolant line options with Mishimoto’s -12ORB Aluminum Fittings
  • Pair with a Mishimoto Air-to-Water Heat Exchanger for the ultimate efficiency in your charge-air cooling setup
  • Multiple core sizes to choose from to fit the needs of your project
  • Mishimoto Lifetime Warranty

DESCRIPTION

Keeping air intake temperatures low is the key to decreasing the impact of heat soak, reducing detonation, and producing consistent power output. As a result, Intercooler systems have evolved substantially over the last decade, bringing liquid-to-air intercoolers into popularity. To help bring the compact efficiency of air-to-water intercooling to your project, Mishimoto has developed a full lineup of high-performance air-to-water intercoolers.

Our air-to-water intercoolers are available in single or dual-pass coolant flow configurations, each with multiple bar-and-plate core sizes and your choice of same-side or opposite-site outlets. These intercoolers support builds producing up to 1500 horsepower.

When it comes to our intercoolers construction, robust is an understatement. Each intercooler features 5mm-thick cast-aluminum end tanks that are custom engineered for superb airflow, reducing overall pressure drop through the cooler. These tanks are professionally TIG-welded to our core, resulting in a pressure tolerance of up to 100 psi of boost. In addition, our intercooler design features unique CNC-machined ribbed inlet and outlet coupler connections, ensuring maximum grip between couplers and intercooler piping.

Mounting and plumbing your air-to-water system can seem like a daunting task, but Mishimoto has made both tasks easy by incorporating -12ORB coolant ports into the core and providing a sturdy 1/8” thick steel universal mounting bracket. Adapting to your specific coolant line choice is easy with the Mishimoto -12ORB Aluminum Fitting selection.

Mishimoto air-to-water intercoolers are finished with a sleek, durable, micro wrinkle black powder coat. As with all our products, these Mishimoto intercoolers include our signature Mishimoto Lifetime Warranty.

PURCHASE INCLUDES

(1) Mishimoto Air-To-Water Intercooler
(1) Mounting Bracket
(4) Mounting Bracket Bolts M6X1.0 X 16mm
Mishimoto Lifetime Warranty
