Description
OVERVIEW
This Radium Engineering fuel hanger replaces the stock fuel pump assembly. No cutting or modifying of the vehicle's sheet metal or fuel tank is required for installation. An optional dual pump add-on kit is available to add a second fuel pump to your hanger.
These dual pump add-on kits allow you to install a second fuel pump onto your Radium fuel pump hanger. This kit requires hanger part number 20-0790-00.
The architecture of this Honda fuel tank is very unique. Because the opening is so small, 2 pumps cannot fit through at the same time. Additionally, the angle of insertion combined with the tall collector bowl and shallow tank make dual pump installation rather difficult.
It is NOT possible to fit 2 Walbro 39/50 DCSS fuel pumps (F90000267/274/285) next to each other in the Honda fuel tank. The internal OEM collector bowl is physically too narrow. But when installed inline, these large base pumps can fit, as shown.
The rear pump assembly is placed in the tank first. A tool is provided to keep this pump back and away while inserting the front pump. An electrical plug and a SAE quick connector eliminate the need to perform tedious assembly before dropping the entire assembly into the tank. Both fuel pumps merge into the single 8AN ORB outlet of the fuel hat. And because of the integrated check valves, fuel pump staging is permitted.
INCLUDED

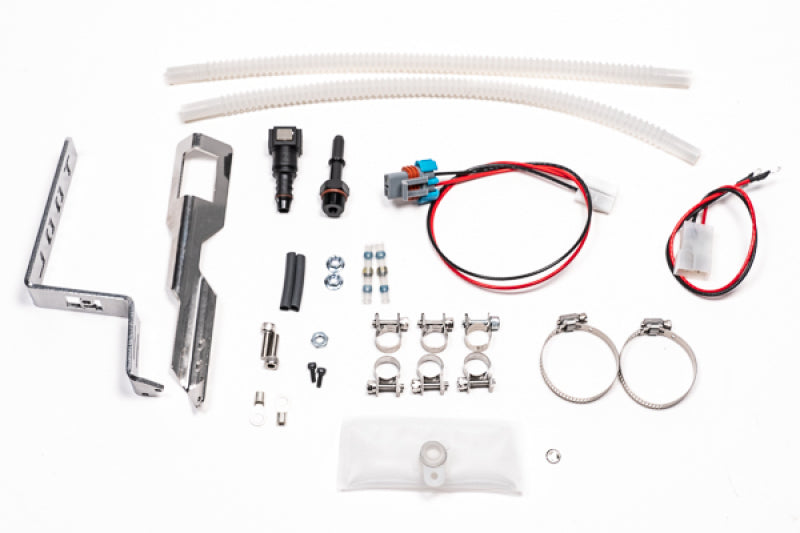

The dual pump add-on kit includes everything needed to install a second pump into your 20-2790 or 20-2792 fuel pump hanger.
COMPATIBILITY
- 94-01 Acura Integra (All models/trims/RHD/LHD)
- 92-00 Honda Civic (All models/trims/RHD/LHD)
