OVERVIEW
20-0391-02 Fuel Rail, S2000, 06-09
This large bore fuel rail features a large 0.69" diameter internal bore. It uses all 4 OEM mounting bosses. The fuel rail is machined, anodized, and laser etched for a high quality surface finish.
This basic setup contains the fuel rail and mounting feet only. It is a great option for custom fuel system applications. Fittings and adapters must be purchased separately.
PORTS AND FITTINGS
The three large fuel rail ports are tapped for 8AN ORB fittings.
Appropriate fittings must be selected based on the specific application. Ample space around the fuel rail port(s) is necessary for larger accessories such as fuel pressure regulators, fuel pressure gauges, and fuel pulse dampers. To verify clearance, the dimensional drawings on the product pages can be used as a reference guide.
FUEL INJECTORS
There are two type of fuel rails made by Radium: upgrade rails and top feed conversion rails. Upgrade rails only upgrade the rail and the OEM fuel injectors can be reused. If an upgrade to the injectors is desired, they must be equivalent to the OEM injector, meaning they must be the same height and the upper & lower O-rings must match the OEM diameters and styles. Top feed conversion rails are used to convert a vehicle that has side feed (or sometimes air-assist) injectors over to a top feed injector.
This fuel rail is an upgrade rail. OEM or OEM equivalent injectors must be used.

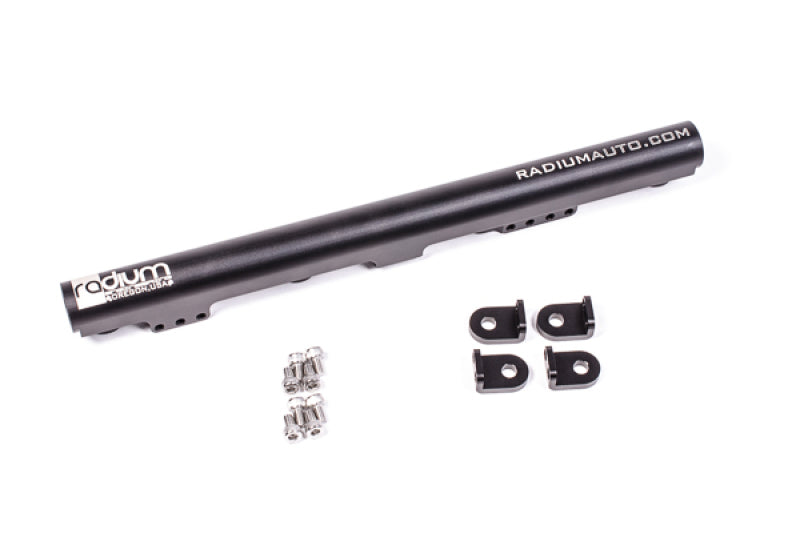

INCLUDED
20-0391-02 Fuel Rail, S2000, 06-09
- Billet anodized aluminum fuel rail
- Fuel rail mounting feet (x4)
- Stainless steel mounting hardware
COMPATIBILITY
- 06-09 Honda S2000
