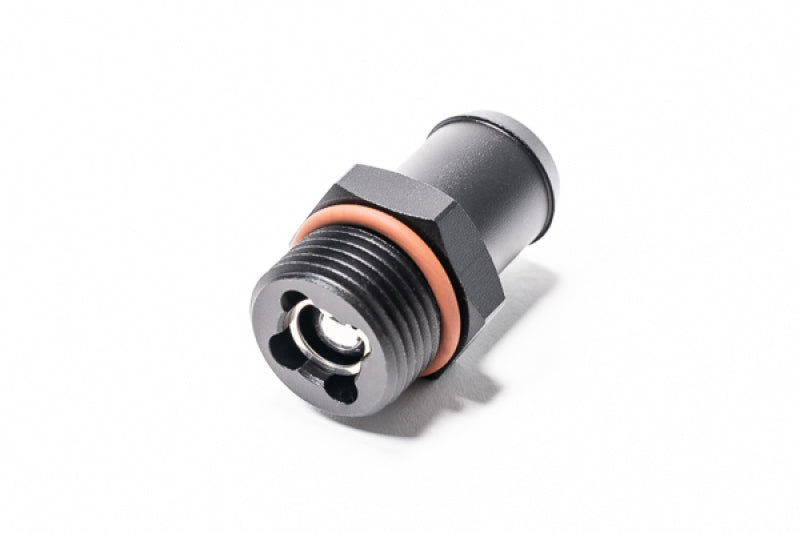

Radium Engineering 10AN ORB to .75in Barb Roll Over Valve - 20-0594

Radium EngineeringSKU: RAD20-0594

Price:
$23.70 $24.95
Stock:
Available (5 units), to ship. For local pickup, please contact us.

Description

OVERVIEW

This fitting should always be mounted in the vertical upright position. In this condition, air flow is permitted to move through the unit in both directions. When the fitting rotates more than 90 degrees, it becomes a shut-off valve not allowing any flow to pass through.

This part was designed to be compatible with Radium Engineering P/N: 18-0042 AIR FILTER, 0.75IN ID. This combination is most commonly used with engine vents, and catch cans. It permits venting but prevents oil from escaping the engine if the vehicle is accidentally inverted.

COMPATIBILITY

  • Engine air vents with 10AN ORB female threaded ports
  • Radium non-Fluid Lock standard catch cans
  • Catch cans with 10AN ORB female threaded ports and top outlets

These must be installed vertically. For Radium Catch cans with side outlets such as Fluid-Lock catch cans, the rollover valve should not be used. Instead, use part 20-0050 10AN ORB male to Air Filter kit.

SPECS & FEATURES

  • Threads: 7/8-14 UNF (10AN ORB)
  • Barb (OD): 0.75" (19mm)
  • Material (valve): Stainless Steel
  • Material (retaining ring): Stainless Steel
  • Material (o-ring): FKM
  • Material (body): 6061 Aluminum
  • Surface (body): Type-II Anodized
