Radium Engineering Port Injection Kit - 2017+ Honda Civic Type-R FK8, FL5, 23+ Integra Type-S - 20-0428

Radium EngineeringSKU: RAD20-0428

Price:
$284.95 $299.95
Stock:
Available (5 units), to ship. For local pickup, please contact us.

Description

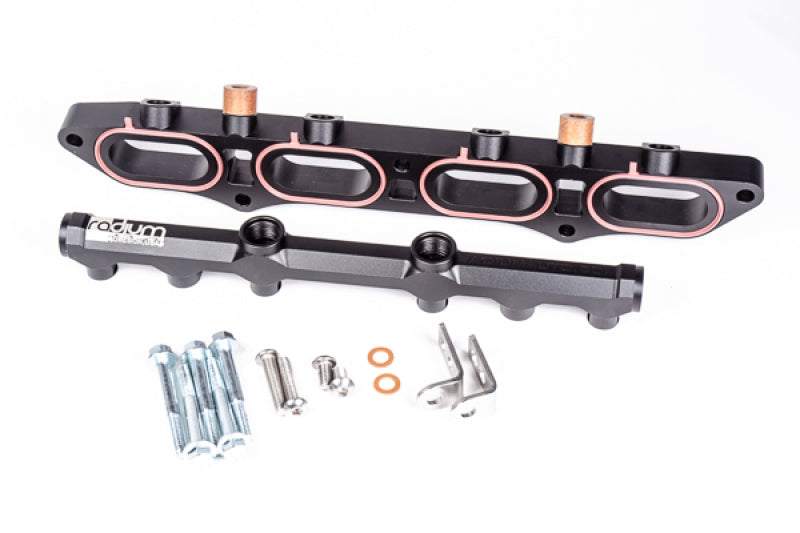

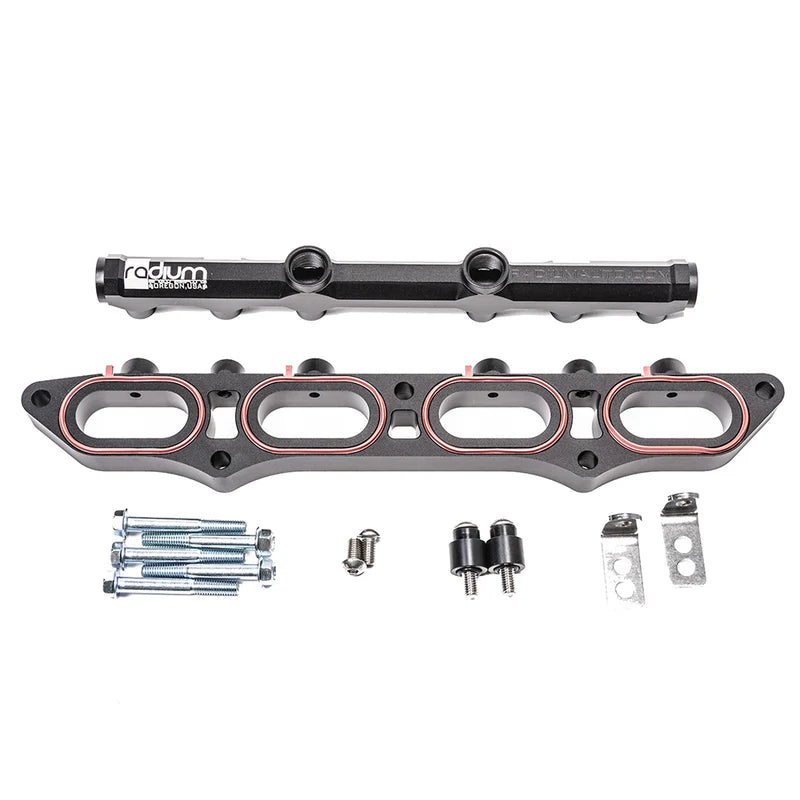

The Radium Engineering Port Injection Kit (PIK) installs between the intake manifold and the cylinder head. It permits the use of port injectors to add additional fuel on high-horsepower K20C1 engines. This does NOT replace the OEM direct injection system. The kit includes the PIK adapter plate, custom fuel rail, fuel rail mounting hardware, and OEM Honda gaskets, as shown in the below picture. It is compatible with all fuel types including popular alcohol mixtures such as E85.

The fuel rail features a large 0.63" internal diameter bore. It is CNC machined from extruded 6063 aluminum and laser etched for a high quality surface finish. All 4 ports are machined with 8AN ORB (3/4-16 female) threads. Note that the 2 top fuel rail ports will need to be plugged with 14-0150 unless the plastic OEM wiring harness carrier is modified.

Insulating mounting spacers and washers are included to completely isolate the fuel rail from heat created by the cylinder head and transferred through the mounting bolts. The injectors are at a specific angle to ensure proper spray into the intake ports.

INSTALLATION NOTES

  • Fuel injectors, port fittings, fuel hose, wiring, injector controller, etc. are NOT included.
  • Because the PIK will space the intake manifold off the head, a custom throttle body pipe will need to be fabricated. Alternatively, an offset silicone coupler can be used with the OEM throttle body pipe.

COMPATIBILITY

  • Honda Civic Type-R (FK8)
  • Honda Civic Type-R (FL5)
  • Acura Integra Type-S (DE5)
