OVERVIEW

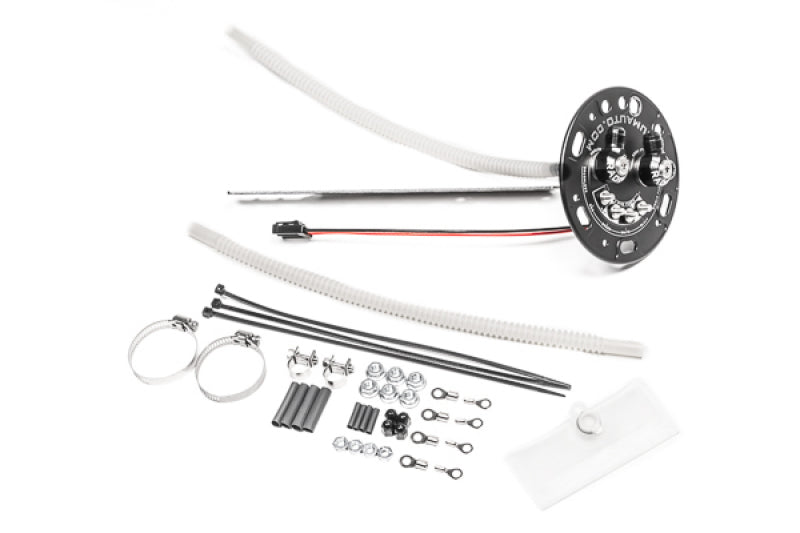

This Radium Engineering fuel hanger replaces the stock fuel pump assembly. No cutting or modifying of the vehicle's sheet metal or fuel tank is required for installation. The available dual pump add-on kit allows the addition of a second fuel pump to the hanger.
20-2790 Hanger 90-05 NSX Fits Walbro GSS342 or AEM 50-1200
This Radium Engineering fuel hanger replaces the stock fuel pump assembly. No cutting or modifying of the vehicle's sheet metal or fuel tank is required for installation. The fuel pump is positioned in the factory collector bowl for fuel starvation protection.
The fuel pump outlet is tapped for 8AN ORB (3/4"-16) female threads on the top plate. The preinstalled 6AN male fitting permits an aftermarket feed line and/or connects to the plumbing kit listed below.
The return inlet is tapped for 6AN ORB (9/16"-18) female threads on the top plate. The preinstalled 6AN male fitting permits an aftermarket return line and/or connects to the plumbing kit listed below.
All fittings are machined low enough to clear the factory sheet metal.
This hanger is compatible with one fuel pump. Choose the best fuel pump based on the expected engine power output, fuel type (gasoline, E85, etc.), and fuel pressure. To add a second pump, add the 20-2796 Dual Pump Add-On to your purchase.
If installing a brushless pump you will be limited to one pump, and the dual pump add-on can NOT be used due to the extra brushless controller wires.
ELECTRICAL
The custom designed anti-rotation stainless steel electrical studs easily handle the high current demand that compact multi-pin bulkhead connectors lack. These serviceable connections are hermetically sealed and impervious to all standard and exotic fuels. Non-conductive anodized aluminum acorn nuts are provided to prevent any accidental short circuiting. Furthermore, the in-tank wiring is insulated with high quality chemically resistant ETFE.
SPECS & FEATURES
- Drop-In Installation
- Anodized Aluminum Construction
- Merged 8AN ORB Female Pump-Out Port
- Fittings for Aftermarket Lines
- Capable of 2 Pumps with Add-On
- Compatible with Various Pumps
- Included Fuel Pump Filter Socks
- High Current Electrical Hardware
- Stainless Steel Hardware and Clamps
- Gasoline, Methanol, and E85 Compliant
- Anti-rotation Electrical Terminals
COMPATIBLE PUMPS
20-2790 Hanger 90-05 NSX Fits Walbro GSS342 or AEM 50-1200
- AEM 50-1000(1)
- AEM 50-1200(1)
- AEM 50-1220(1)
- AEM 50-1230(1)(3)
- AEM 50-1235(1)(3)
- Walbro GSS342(2)
(1)Sock filters are included by the fuel pump manufacturer.
(2)Sock filters are included in this kit for these pumps.
(3)These pumps do NOT feature a check valve.
