Description
OVERVIEW

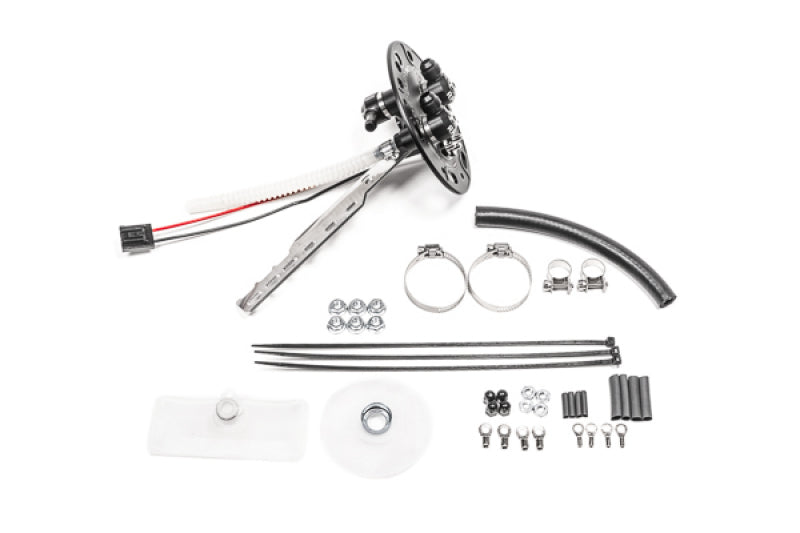

This Radium Engineering fuel hanger replaces the stock fuel pump assembly. No cutting or modifying of the vehicle's sheet metal or fuel tank is required for installation. Dual pump add-on kits are available to add a second pump to the hanger, and a fuel hanger connection kit is available to plumb the hanger to the stock fuel lines.
This Radium Engineering fuel hanger replaces the stock fuel pump assembly. No cutting or modifying of the vehicle's sheet metal or fuel tank is required for installation.
The fuel pump is positioned in the factory collector bowl for fuel starvation protection.
PORT FITTINGS
The fuel pump outlet is tapped for 8AN ORB (3/4"-16) female threads on the top plate. The preinstalled 6AN male fitting permits an aftermarket feed line and/or connects to the plumbing kit listed below.
The return inlet is tapped for 6AN ORB (9/16"-18) female threads on the top plate. The provided -6AN male fitting permits an aftermarket return line and/or connects to the plumbing kit listed below.
All fittings are machined low enough to clear the trunk sheet metal.
This hanger is configured to be used with 1 aftermarket fuel pump. If 2 aftermarket pumps are required, order the dual pump add-on part number 20-1796 in addition to the hanger.
If installing a brushless pump, the dual pump add-on can NOT be used due to the extra brushless controller wires.
Choosing the best fuel pump(s) is based on the expected engine power output, fuel type (gasoline, E85, etc.), and fuel pressure. The pumps below are compatible:
ELECTRICAL
The custom designed ant-rotation stainless steel electrical studs easily handle the high current demand that compact multi-pin bulkhead connectors lack. These serviceable connections are hermetically sealed and impervious to all standard and exotic fuels. Non-conductive anodized aluminum acorn nuts are provided to prevent any accidental short circuiting. Furthermore, the in-tank wiring is insulated with high quality chemically resistant ETFE.
20-1790 Fuel Hanger Fits Walbro GSS342 or AEM 50-1200
- AEM 50-1000(1)
- AEM 50-1200(1)
- AEM 50-1220(1)
- AEM 50-1230(1)(3)
- AEM 50-1235(1)(3)
- Walbro GSS342(2)
(1)Sock filters are included by the fuel pump manufacture.
(2)Sock filters are included in this kit for these pumps.
(3)These pumps do NOT feature a check valve.
SPECS & FEATURES
- Drop-In Installation
- Anodized Aluminum Construction
- Merged 8AN ORB Female Pump-Out Port
- Fittings for Aftermarket Fuel Lines
- Capable of 2 Pumps with Add-On
- Compatible with Various Pumps
- Included Fuel Pump Filter Sock
- High Current Electrical Hardware
- Stainless Steel Hardware and Clamps
- Gasoline, Methanol, and E85 Compliant
- Anti-rotation Electrical Terminals
COMPATIBILITY
- 90-93 Acura Integra (All models/trims/RHD/LHD)
- 88-91 Honda Civic (All models/trims/RHD/LHD)
- 88-91 Honda CR-X (All models/trims/RHD/LHD)
