OVERVIEW

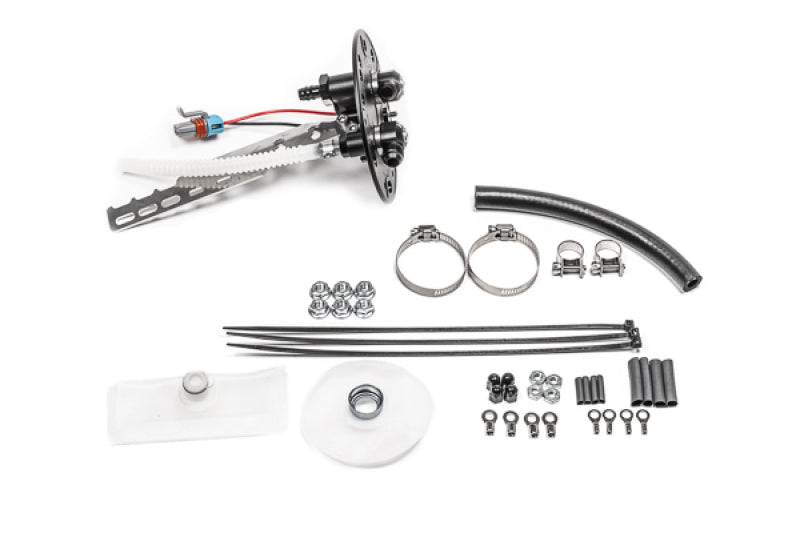

20-3790 & 20-3792 Fuel Pump Hangers
This Radium Engineering fuel hanger replaces the stock fuel pump assembly. No cutting or modifying of the vehicle's sheet metal or fuel tank is required for installation. All fittings are machined low enough to clear the fuel pump access cover. The fuel pump is positioned in the factory collector bowl for fuel starvation protection.
PORTS AND FITTINGS
The fuel pump outlet is tapped for 8AN ORB (3/4"-16) female threads on the top plate. The preinstalled 6AN male fitting permits an aftermarket feed line and/or connects to the plumbing kit listed below.
The return inlet is tapped for 6AN ORB (9/16"-18) female threads on the top plate. The provided 6AN male fitting permits an aftermarket return line and/or connects to the plumbing kit listed below.
ELECTRICAL
The custom designed anti-rotation stainless steel electrical studs easily handle the high current demand that compact multi-pin bulkhead connectors lack. These serviceable connections are hermetically sealed and impervious to all standard and exotic fuels. Non-conductive anodized aluminum acorn nuts are provided to prevent any accidental short circuiting. Furthermore, the in-tank wiring is insulated with high quality chemically resistant ETFE.
COMPATIBLE PUMPS
- Walbro F90000267(1)
- Walbro F90000274(1)
- Walbro F90000285(1)
- Walbro F90000295(1)(3)
- Ti Automotive E5LM (brushless)(1)(3)
- Protec 11928 (brushless)(2)
- Fuelab 49614 (brushless)(2)
- Deatschwerks DW440 (brushless)(2)
- Deatschwerks DW810 (brushless)(2)
(1)Sock filters are included in this kit for these pumps.
(2)Sock filters are included by the fuel pump manufacture.
(3)These pumps do NOT feature a check valve.
SPECS & FEATURES
- Drop-In Installation
- Anodized Aluminum Construction
- Merged 8AN ORB Female Pump-Out Port
- Fittings for Aftermarket Fuel Lines
- Capable of 2 Pumps with Add-On
- Compatible with Various Pumps
- Included Fuel Pump Filter Sock
- High Current Electrical Hardware
- Stainless Steel Hardware and Clamps
- Gasoline, Methanol, and E85 Compliant
- Anti-rotation Electrical Terminals
COMPATIBILITY
- Honda Del Sol (All models/trims/RHD/LHD)
