Radium Engineering 93-98 Honda Del Sol Fuel Hanger (walGSS342 or aem50-1200) - 20-3790

Radium EngineeringSKU: RAD20-3790

Price:
$218.45 $229.95
Stock:
Contact us for availability!

Description

OVERVIEW

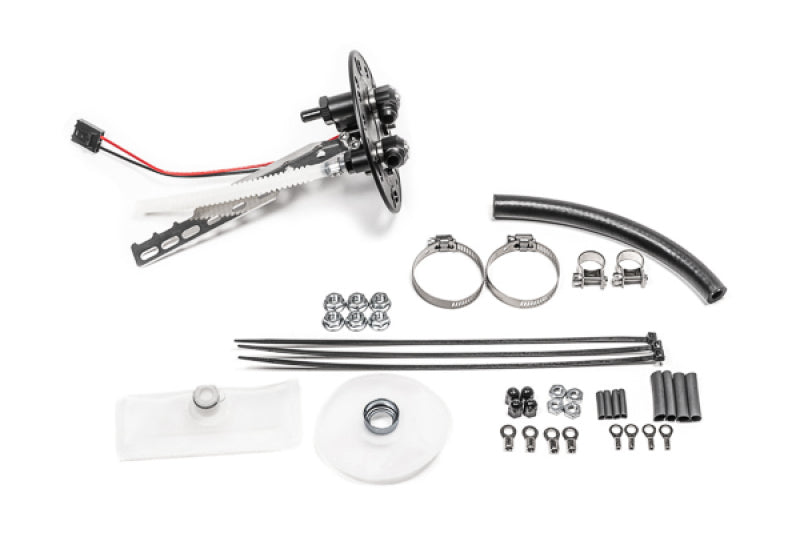

20-3790 & 20-3792 Fuel Pump Hangers

This Radium Engineering fuel hanger replaces the stock fuel pump assembly. No cutting or modifying of the vehicle's sheet metal or fuel tank is required for installation. All fittings are machined low enough to clear the fuel pump access cover. The fuel pump is positioned in the factory collector bowl for fuel starvation protection.

PORTS AND FITTINGS

The fuel pump outlet is tapped for 8AN ORB (3/4"-16) female threads on the top plate. The preinstalled 6AN male fitting permits an aftermarket feed line and/or connects to the plumbing kit listed below.

The return inlet is tapped for 6AN ORB (9/16"-18) female threads on the top plate. The provided 6AN male fitting permits an aftermarket return line and/or connects to the plumbing kit listed below.

ELECTRICAL

The custom designed anti-rotation stainless steel electrical studs easily handle the high current demand that compact multi-pin bulkhead connectors lack. These serviceable connections are hermetically sealed and impervious to all standard and exotic fuels. Non-conductive anodized aluminum acorn nuts are provided to prevent any accidental short circuiting. Furthermore, the in-tank wiring is insulated with high quality chemically resistant ETFE.

SPECS & FEATURES

  • Drop-In Installation
  • Anodized Aluminum Construction
  • Merged 8AN ORB Female Pump-Out Port
  • Fittings for Aftermarket Fuel Lines
  • Capable of 2 Pumps with Add-On
  • Compatible with Various Pumps
  • Included Fuel Pump Filter Sock
  • High Current Electrical Hardware
  • Stainless Steel Hardware and Clamps
  • Gasoline, Methanol, and E85 Compliant
  • Anti-rotation Electrical Terminals

COMPATIBLE PUMPS

20-3790 Fuel Hanger Fits Walbro GSS342 or AEM 50-1200

  • AEM 50-1000(2)
  • AEM 50-1200(2)
  • AEM 50-1220(2)
  • AEM 50-1230(2)(3)
  • AEM 50-1235(2)(3)
  • Walbro GSS342(1)

(1)Sock filters are included in this kit for these pumps.
(2)Sock filters are included by the fuel pump manufacture.
(3)These pumps do NOT feature a check valve.

COMPATIBILITY

  • Honda Del Sol (All models/trims/RHD/LHD)
