Radium Engineering 94-01 Acura Integra/ 92-00 Honda Civic Fuel Hanger For Walbro F90000267/274/285 - 20-0792-00

Radium EngineeringSKU: RAD20-0792-00

Price:
$232.70 $244.95
Stock:
Available (12 units), to ship. For local pickup, please contact us.

Description

OVERVIEW

This Radium Engineering fuel hanger replaces the stock fuel pump assembly. No cutting or modifying of the vehicle's sheet metal or fuel tank is required for installation. An optional dual pump add-on kit is available to add a second fuel pump to your hanger.

20-0792-00 Fuel Hanger Integra Civic Fits Walbro F90000267/274/285

  • Walbro F90000267
  • Walbro F90000274
  • Walbro F90000285
  • Walbro F90000295(2)

(2)These pumps do NOT feature a check valve. If this is required, purchase 20-1534. NOTE: This cannot be used on the second pump.

This Radium Engineering fuel hanger replaces the stock fuel pump assembly. No cutting or modifying of the vehicle's sheet metal or fuel tank is required for installation.

The fuel pump is positioned in the factory collector bowl for fuel starvation protection.

PORTS & FITTINGS

The fuel pump outlet is tapped for 8AN ORB (3/4"-16) female threads on the top plate. There are multiple adapter fittings included for the outlet.

  • The preinstalled -6AN male fitting permits an aftermarket feed line.
  • The 8.5mm barbed adapter fitting permits the (94-95 Integra/92-95 Civic) OEM feed line to be reused.
  • The SAE quick connect fitting permits the (96-01 Integra/96-00 Civic) OEM feed line to be reused.

The return inlet is tapped for 4AN ORB (7/16"-20) female threads on the top plate. There are 2 fittings included for the return port.

  • The preinstalled 6.5mm barbed fitting permits the OEM return line to be reused.
  • The provided -6AN male fitting permits an aftermarket return line.

All fittings are machined low enough to clear the fuel pump access cover. The 96-01 Integra and 96-00 Civic require the OEM return hose to be extended to reach the hanger.

The hanger is configured to be used with 1 aftermarket fuel pump. If 2 aftermarket pumps are required, the supplementary dual pump add-on 20-0797-00 must also be purchased. Choosing the best fuel pump(s) is based on the expected engine power output, fuel type (gasoline, E85, etc.), and fuel pressure.

ELECTRICAL

The custom designed anti-rotation stainless steel electrical studs easily handle the high current demand that compact multi-pin bulkhead connectors lack. These serviceable connections are hermetically sealed and impervious to all standard and exotic fuels. Non-conductive anodized aluminum acorn nuts are provided to prevent any accidental short circuiting. Furthermore, the in-tank wiring is insulated with high quality chemically resistant ETFE.

SPECS & FEATURES

  • Drop-In Installation
  • Anodized Aluminum Construction
  • Merged 8AN ORB Female Pump-Out Port
  • Fittings for Aftermarket and OEM Lines
  • Capable of 2 Pumps with Add-On
  • Compatible with Various Pumps
  • Included Fuel Pump Filter Sock
  • High Current Electrical Hardware
  • Stainless Steel Hardware and Clamps
  • Gasoline, Methanol, and E85 Compliant
  • New Anti-rotation Electrical Terminals

INSTALLATION NOTES

  • It is recommended to upgrade OEM wiring to ensure the pumps are receiving full power and operating at their full potential.

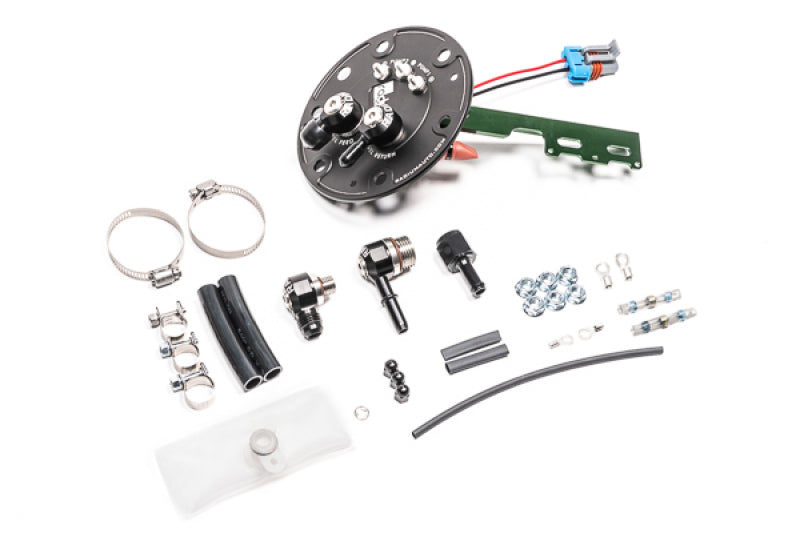

INCLUDED

These fuel pump hangers include the partially assembled fuel pump hanger and all hardware necessary to install 1 fuel pump into the hanger. It also includes electrical parts to assist in the external wiring at the top hat.

COMPATIBLE PUMPS

    • Walbro F90000267
    • Walbro F90000274
    • Walbro F90000285
    • Walbro F90000295(2)

    (2)These pumps do NOT feature a check valve. If this is required, purchase 20-1534. NOTE: This cannot be used on the second pump.

    COMPATIBILITY

    • 94-01 Acura Integra (All models/trims/RHD/LHD)
    • 92-00 Honda Civic (All models/trims/RHD/LHD)
