Radium Engineering Nissan SR20VE Fuel Rail - 20-0331

Radium EngineeringSKU: RAD20-0331

Price:
$208.95 $219.95
Stock:
Available (5 units), to ship. For local pickup, please contact us.

Description

OVERVIEW

Manufactured with a large 0.69" internal bore, the fuel rail can support all necessary engine power requirements. The Radium fuel rail converts the OEM side feed fuel injector setup to top feed allowing the use of high flow 14mm O-ring fuel injectors (not included). This rail is compatible with E85. The rail is extruded and CNC machined from solid 6063 aluminum and black anodized for a high quality surface finish. With the combination of the OEM insulating spacers and the included thermal insulating mounting washers, the fuel rail is 100% isolated from intake manifold heat transfer.

The fuel rail ports are tapped for 8AN ORB fittings.

Appropriate fittings must be selected based on the specific application. Ample space around the fuel rail port(s) is necessary for larger accessories such as fuel pressure regulators, fuel pressure gauges, and fuel pulse dampers. To verify clearance, the dimensional drawings on the product pages can be used as a reference guide.

FUEL INJECTORS

The Radium fuel rail converts from side feed fuel injectors to top feed, allowing the use of high flow aftermarket fuel injectors. The billet aluminum injector seats are anodized and laser etched and press into the intake manifold as shown. They provide a sealed base for the top feed injectors.

Reference the diagram below to ensure compatible fuel injectors are obtained. For this fuel rail, a 34mm tall universal injector with 14mm upper and lower O-rings must be used. Most popular injector suppliers offer a fuel injector in this configuration. Consult the injector supplier to this page if needed.

Short 34mm injectors are used in this kit because hood clearance may become an issue if taller injectors are used.

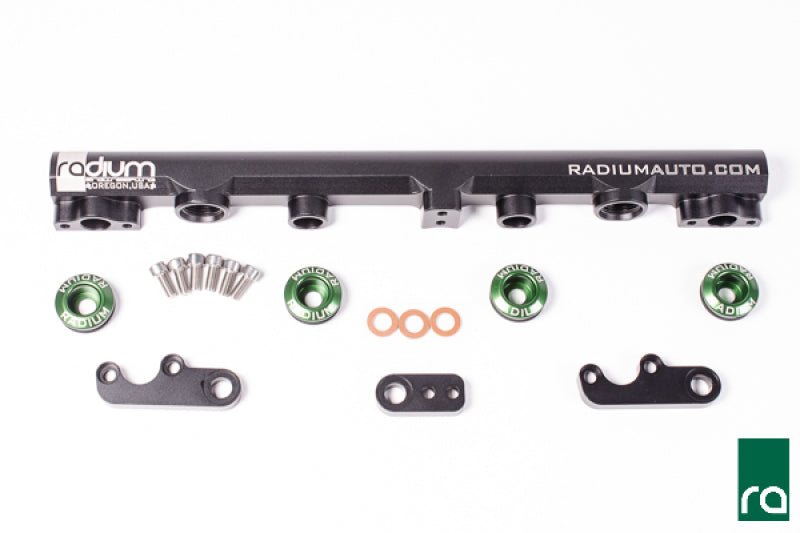

INCLUDED

  • Black Anodized Aluminum Fuel Rail
  • Black Anodized Aluminum Mounting Feet
  • Stainless Steel Mounting Feet Bolts
  • Thermal Insulating Mounting Washers
  • Green Anodized Aluminum 25mm Injector Seats

COMPATIBILITY

  • JDM 97-00 Nissan U14 Bluebird SSS-Z SR20VE
  • JDM 97-00 Nissan P11 Primera Te-V SR20VE
  • JDM 97-00 Nissan P11 Primera G-V SR20VE
