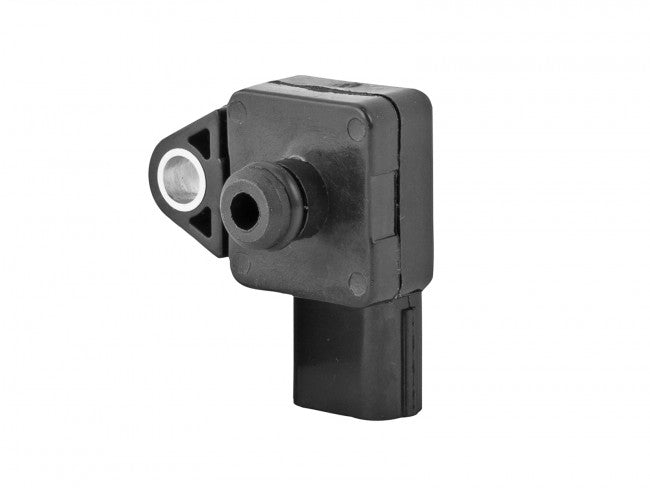

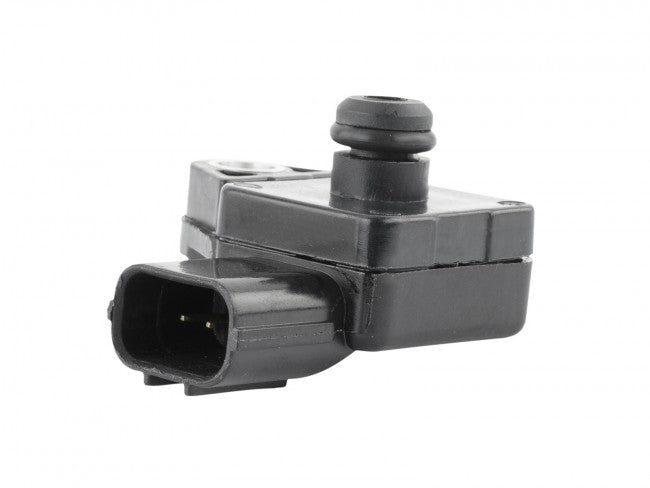

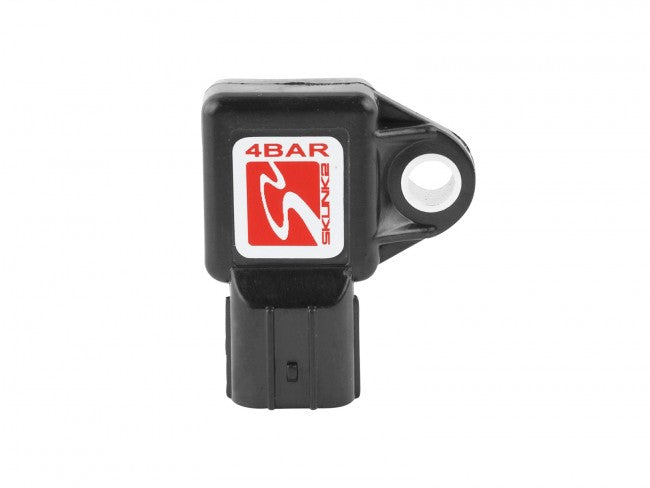

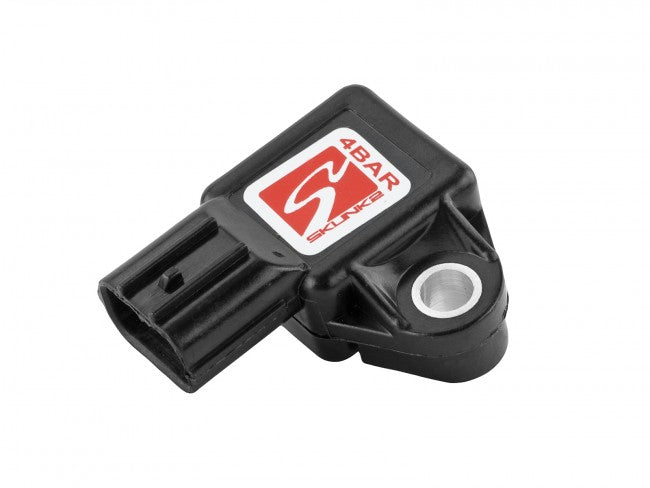

Skunk2 4 BAR MAP Sensor - 12-15 Honda Civic SI K24Z7, ILX, S2000 F22C - 352-05-1520

Skunk2 RacingSKU: SKK352-05-1520

Price:
$104.99 $110.24
Stock:
Contact us for availability!

Description

Skunk2 is proud to offer our very own 4 BAR MAP Sensor for the 2012-2015 Civic Si, 2006-2009 S2000 and 2013-2015 ILX for all your boosted K24Z7 and F22C engine needs!

A 1 BAR MAP sensor reports barometric pressure times one, which is approximately 14.7 psi or 30in/Hg (inches of mercury). 2 BAR or 3 BAR simply mean two or three times above barometric pressure. The sensor will measure each direction, vacuum or pressure.

For Reference:
1 BAR is for a normally aspirated engine
2 BAR will handle a forced induction up to 14.5 psi of boost
3 BAR will handle a forced induction up to 29.0 psi of boost
4 BAR will handle a forced induction up to 43.5 psi of boost

A vehicles computer is calibrated to function at a specific level as programmed by the design engineer. A 2, 3, or 4 BAR MAP sensor placed in a system designed for a 1 BAR sensor will not function correctly; in fact the system will run very rich because of the low return voltage signal. A computer that is programmable is a must for any tuner attempting to boost their engines output with the addition of a turbocharger and a 2, 3, or 4 BAR MAP sensor.


Fitment:

Acura ILX
13-15 Acura ILX 2.4 K24Z7
Honda Civic
12-15 Honda Civic Si 2.4 K24Z7
Honda S2000
04-09 Honda S2000 2.2 F22C1
