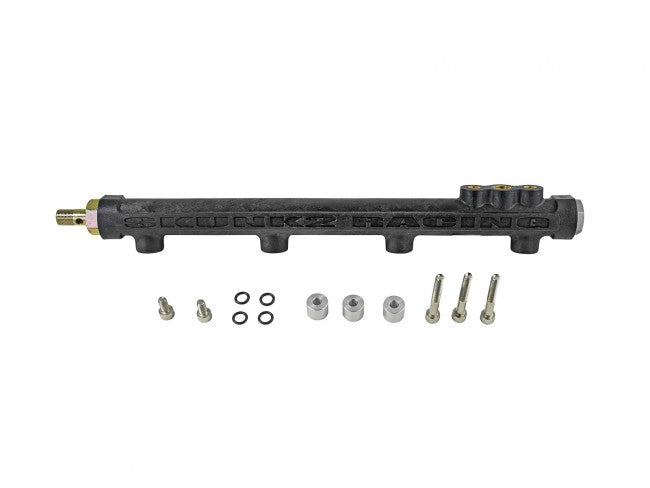

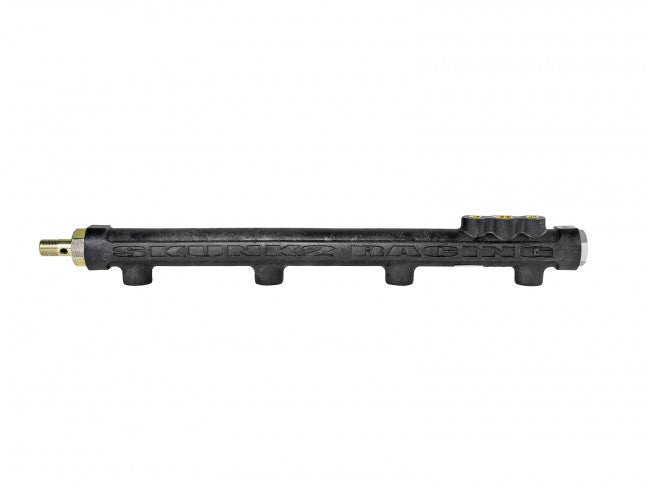

Skunk2 Composite Fuel Rail Black - Honda B-Series - 350-05-5000

Skunk2 RacingSKU: SKK350-05-5000

Price:
$210.99 $221.54
Stock:
Available (8 units), to ship. For local pickup, please contact us.

Description

Skunk2's Composite Fuel Rails are made using a proprietary carbon-impregnated, aerospace thermo-polymer composite - a material that is 33-percent lighter, 60-percent stronger, and operates up to 100-degrees (F) cooler when compared to aluminum. The Composite Fuel Rail insulates fuel from both radiant and conductive heat transfer underneath the hood better than aluminum, resulting in increased horsepower and torque.

Composite Fuel Rails also feature large 0.625-inch internal bores for superior fuel injector pulsation dampening, machined with a smooth interior finish and feature radius-cut fuel injector outlets for improved flow characteristics. Conventional extruded and drilled aluminum rails are typically flawed by design due to machine limitations, resulting sharp internal angles where the main bore meets the fuel injector bores. Eliminating this design flaw limitation can Only be achieved with the natural-flow-moldable composite materials. Skunk2's B-series Composite Fuel Rails are compatible with the factory fuel system, as well as all pump and race fuels, including alcohol. The Skunk2 Composite Fuel Rail can support up to 1,200hp, with gains as high as three percent realized during testing.

Features:

Supports up to 1,200HP
Proprietary carbon-impregnated aerospace thermo-polymer composite
Better thermal protection over aluminum
Operates up to 100-degrees (F) cooler
33-percent lighter, 60-percent stronger
Large 0.625-inch internal bores for superior fuel injector pulsation dampening
Integrated -8 AN inlet and outlet for easily customized fuel lines
Features OEM fuel pressure regulator provisions
Features additional 1/8-inch NPT fuel pressure port

Supports up to 1,200 hp.
Integrated -8 AN inlet and outlet for easily customized fuel lines.
Features OEM fuel pressure regulator provisions.
Features additional 1/8-inch NPT fuel pressure port.


Fitment:

Acura Integra
90-93 Acura Integra GS LS RS 1.8 B18A1
92-93 Acura Integra GS-R 1.7 B17A1
94-01 Acura Integra GS LS RS 1.8 B18B1
94-01 Acura Integra GS-R 1.8 B18C1
97-01 Acura Integra Type-R 1.8 B18C5
Honda Civic
99-00 Honda Civic Si 1.6 B16A
Honda Del Sol
94-97 Honda Del Sol VTEC 1.6 B16A
