SpeedFactory Racing High Performance MLSS-HP Head Gasket for Honda/Acura D-Series VTEC Engines - 75mm-76mm - SF-02-212

SpeedFactory RacingSKU: SF-02-212

Price:
$115.48
Stock:
Contact us for availability!

Description

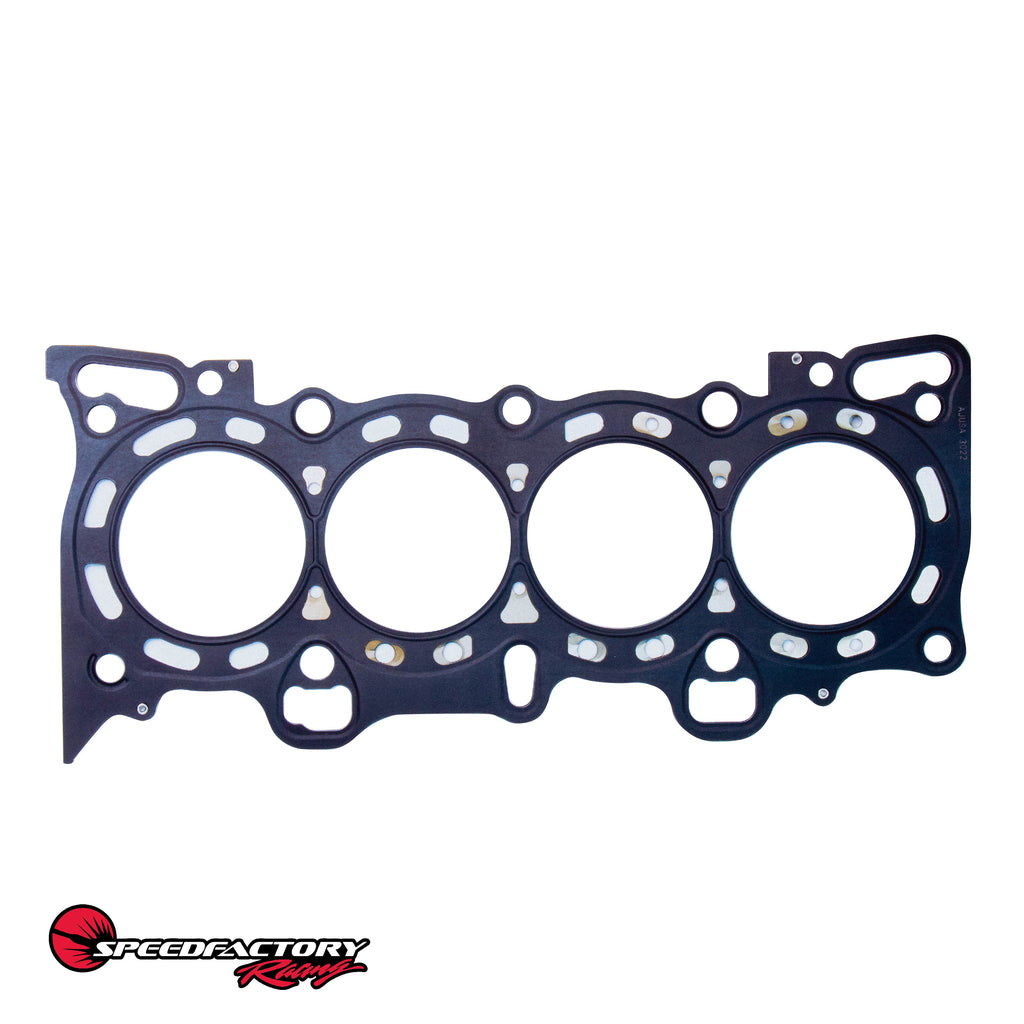

SpeedFactory High Performance MLSS-HP Head Gaskets for Honda/Acura D-Series VTEC Engines

SpeedFactory Racing is proud to release our own high-performance Honda D-Series VTEC MLS head gasket with integrated fire-ring!

These MLS gaskets have been purpose-built to provide an excellent seal on ALL SOHC D-Series VTEC applications, from factory setups to high compression / nitrous / turbocharged / supercharged engines.

Most turbo D-Series SOHC VTEC enthusiasts utilize a stock engine block & cylinder head with upgraded internal components, generating 2-4x the stock power levels.

Upgraded head studs are a must, but many still struggle with head gasket sealing issues at 250+whp. For these problematic D16 applications, we've added a folded gas stopper ring design around the combustion chambers for a reliable combustion seal.

Our 0.036” gasket thickness makes up for cylinder head and block surfacing vs the OEM 3-layer 0.028” thickness and allows us to utilize a 4-layer design with specialized embossments that increase active combustion sealing height, ideal for high output engines that experience high levels of head lift/movement. We’ve also incorporated a unique internal silicone bead on the oiling passages for improved sealing.

FITMENT:

  • Honda/Acura D-Series SOHC VTEC engines
  • Available Size: 76.00mm (Use for 75.00mm-76.00mm maximum bore)
  • 0.036”/0.914mm thickness

FEATURES:

  • MLSS-HP (Multiple Layer Stainless Steel + Silicone Bead) Head Gasket optimized for high performance use
  • 4-layer MLS design with specialized embossment increases active combustion sealing height, ideal for forced induction engines that experience high levels of head lift/movement.
  • Integrated fire-ring for a reliable combustion seal on forced induction D-series engines.

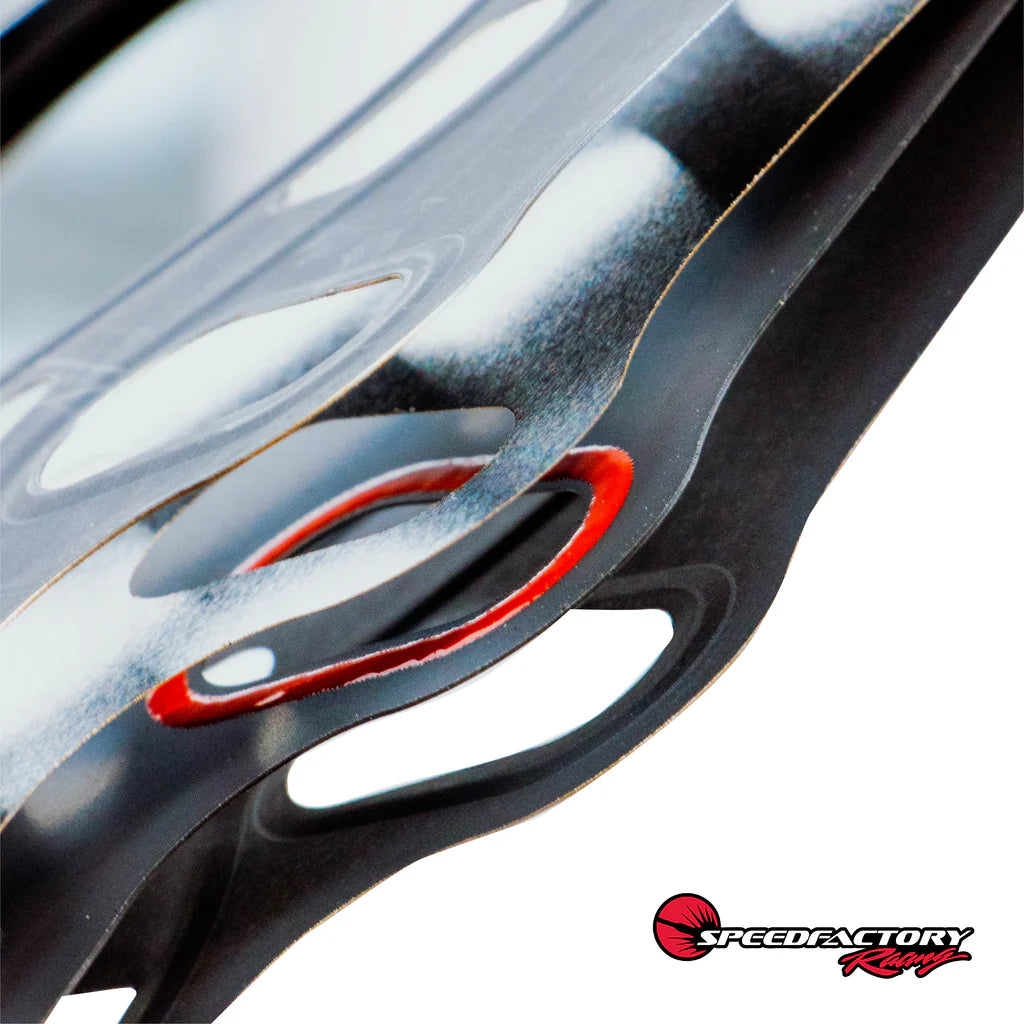

  • Unique internal silicone elastomeric sealing bead around oiling passages for improved fluid sealing.
  • High performance elastomeric coating to ensure the best possible seal by compensating for surface irregularities.
  • OE quality, OE certified manufacturer (ISO 9001, ISO/TS16949, ISO 14001 certified).

NOTE: If running beyond the 600+whp range a sleeved block with o-rings and a standard Cometic MLS gasket is recommended. If using o-rings with our gasket the o-ring must be placed outside the fire-ring.

1992:Honda:Civic:EX,
1992:Honda:Civic:Si,
1993:Honda:Civic:EX,
1993:Honda:Civic:Si,
1994:Honda:Civic:EX,
1994:Honda:Civic:Si,
1995:Honda:Civic:EX,
1995:Honda:Civic:Si,
1996:Honda:Civic:EX,
1997:Honda:Civic:EX,
1998:Honda:Civic:EX,
1999:Honda:Civic:EX,
2000:Honda:Civic:EX,
1993:Honda:Civic del Sol:Si,
1994:Honda:Civic del Sol:Si,
1995:Honda:Civic del Sol:Si,
1996:Honda:Civic del Sol:S,
1996:Honda:Civic del Sol:Si,
1997:Honda:Civic del Sol:S,
1997:Honda:Civic del Sol:Si,
