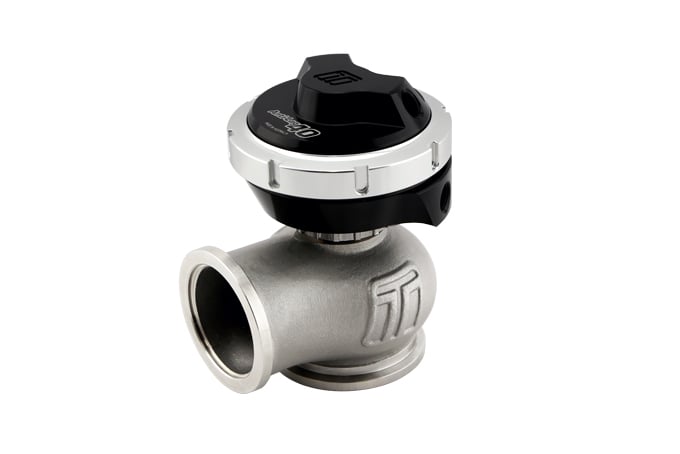

Turbosmart WG40ALV GenV CompGate 40mm - 5 PSI Black - TS-0552-1402

TurbosmartSKU: TURTS-0552-1402

Price:
$458.95 $509.94
Stock:
Contact us for availability!

Description

The Turbosmart ALV40 (Anti-Lag Valve) is a fresh air anti-lag bypass valve for motorsport applications. Featuring a 40mm valve diameter and a purpose-designed actuator housing. Multiple fittings are also supplied for ease of fitment and fabrication.

The ALV40 Fresh Air Valve allows for incoming charged fresh air from the turbo to be diverted safely into the exhaust manifold pre-turbine wheel with the throttle at low opening angles to allow for safer spooling of the turbocharger without the potentially damaging throttle-based late combustion event style anti-lag that can induce high engine stresses and break connecting rods.

The ALV is a sealed twin-chamber design, with the top port being the primary control port. The spring is designed to open under vacuum conditions to allow the air to bypass into the exhaust manifold, the lower chamber for twin-port control methods, control the valve irrespective of manifold pressure, and the shaft seal allows for leakproof operation.

Features
Twin Chamber Control
Suitable for Boost or Vacuum
Clockable Actuator Housing
Optional 1-5 port outlet flanges
Nitronic 60 Valve Guide & High Temp 347 Ss Body
17/7 PH Stainless Steel Springs
Strap Type V-band clamps

SUPPLIED WITH
Turbosmart GenV Anti lag Valve
Valve Seat
Inlet & Outlet V-band Clamp
Inlet Hose Adapter 1-1/2" OD
Inlet Weld Flange 1-1/2" OD
C Spanner / Collar Tool
Inlet O-ring
Turbosmart Decal
